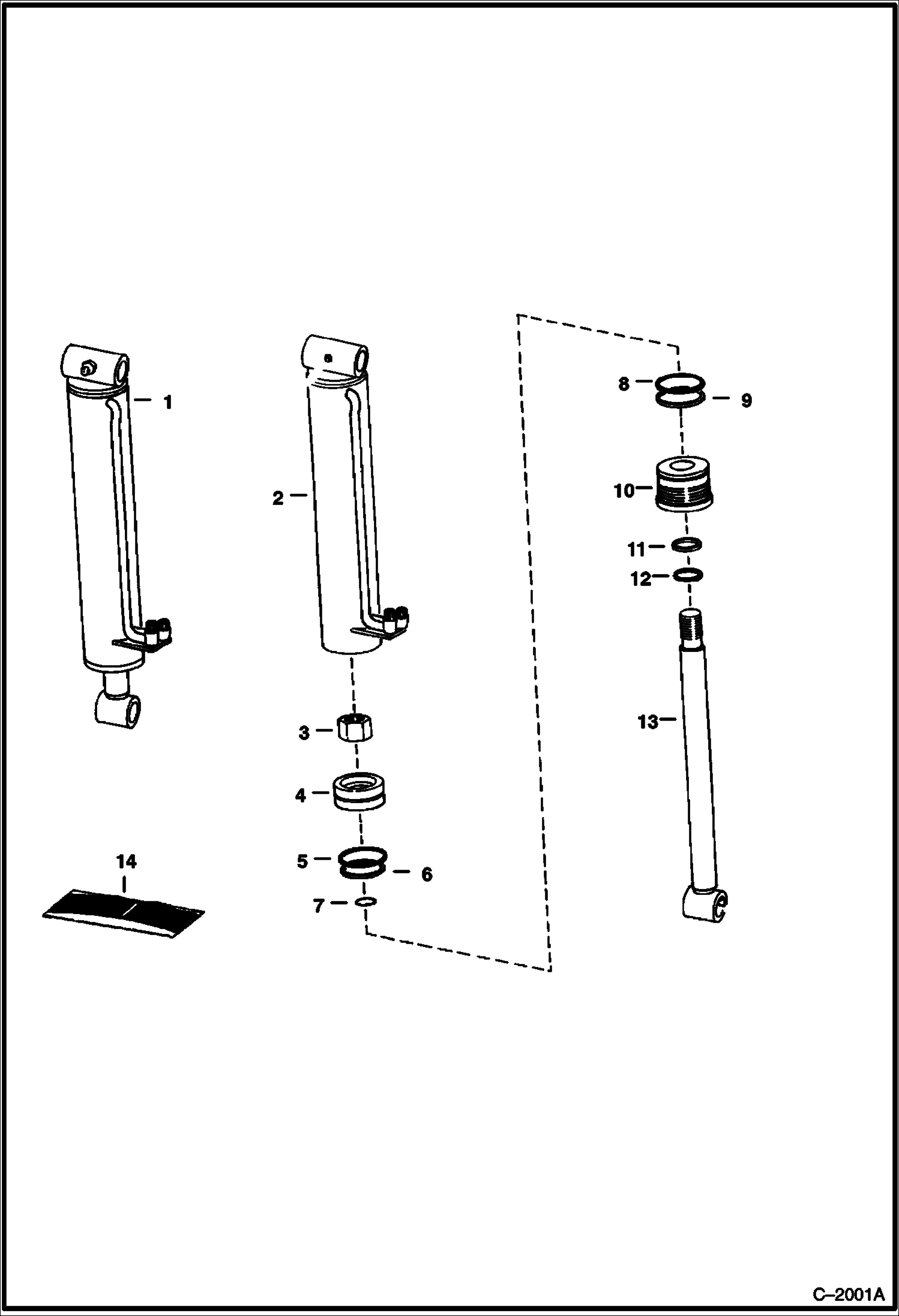

Запчасти Bobcat 600s TILT CYLINDER (S/N 13001 to 13631) (3 1/4 in. I.D.) HYDRAULIC SYSTEM

1

CYLINDER See BTI136 NLA - Was 6558782 - A

2

CASE NLA

3

6810539

NUT Was 86D000018B - A

4

6558778

PISTON

5

6513466

PISTON RG

6

25K30226

O RING 10

7

58K024

O-RING 10

8

58K234

O RING 10 Was 54K40300 - B

9

73K234

BACK-UP RING back-up - Was 80K234 - A

10

6558774

HEAD

11

6538141

SEAL rod

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6557184

ROD cylinder

14

7135551

KIT, SEAL Ref. 5-9, 11 & 12 - Was 6804605 - A

14

SEAL KIT NLA - Tool - Order MEL-1010 - Was 6562764 - A
