Запчасти Bobcat 600s TILT CYLINDER (S/N 12999 & Below) (3 in. I.D.) HYDRAULIC SYSTEM

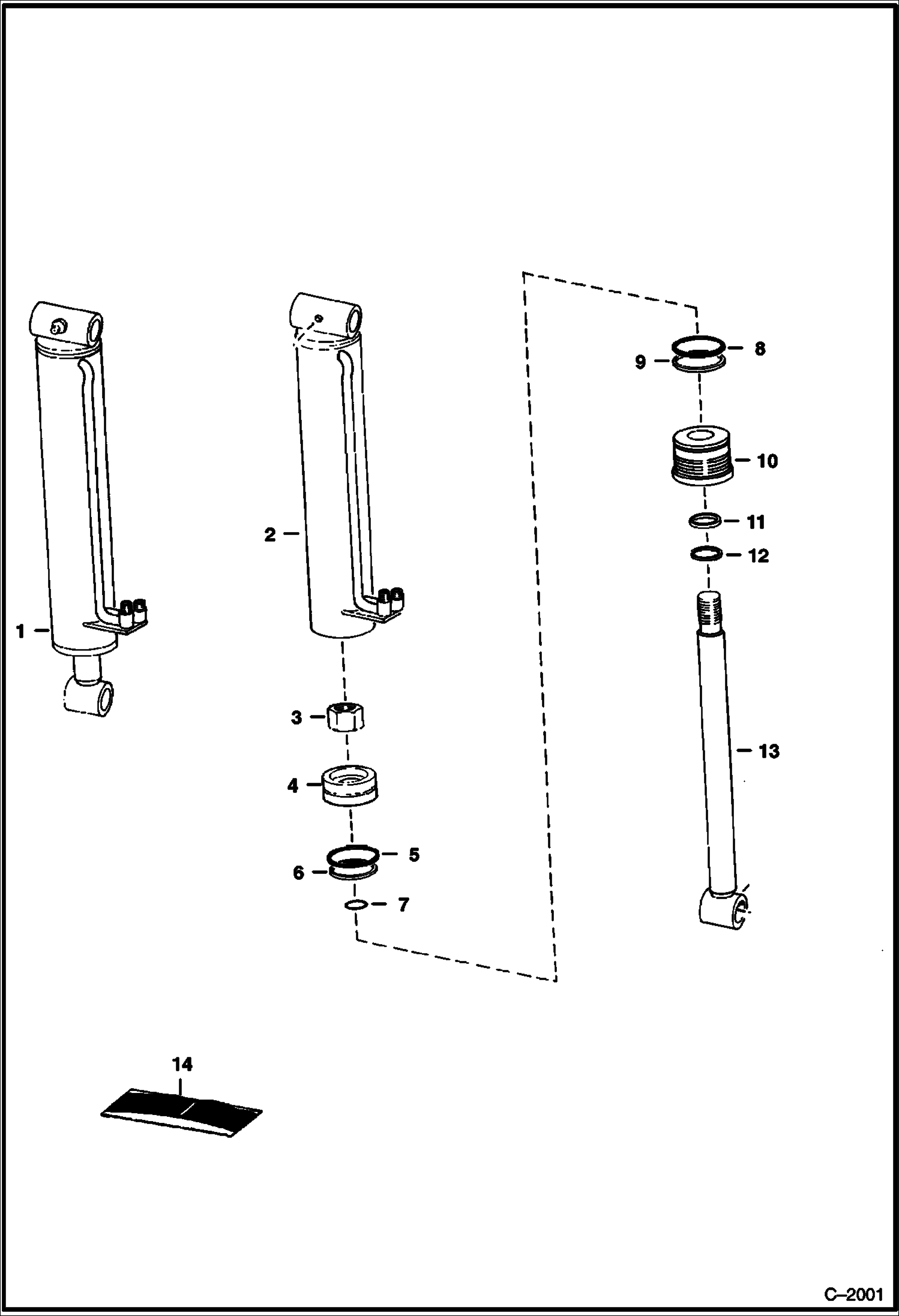

Схема запчастей Bobcat 600s - TILT CYLINDER (S/N 12999 & Below) (3 in. I.D.) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6555992

CYLINDER See BTI136 tilt

2

CASE NLA

3

62D18

NUT hex

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP

6

25K30218

O RING 10

7

58K024

O-RING 10

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6588912

HEAD Was 6531649 - A

11

6538141

SEAL rod

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6557184

ROD cylinder

14

6589798

SEAL KIT Ref. 5 - 9, 11 & 12 - Was 6661056 - A

14

6804604

SEAL KIT Ref. 5, 6, 7, 9 & 12

Выбрано товаров: 15
