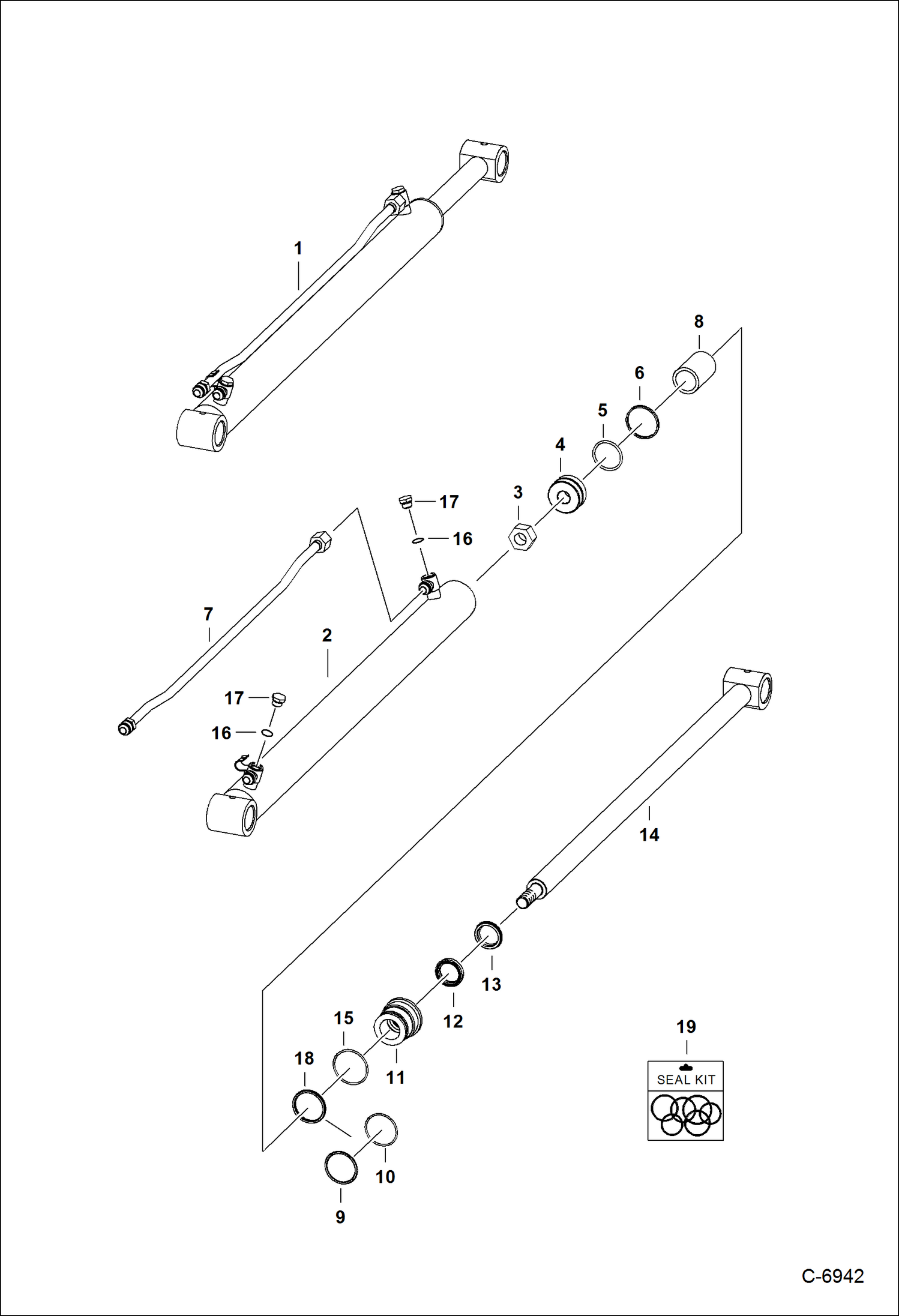

Запчасти Bobcat 600s LIFT CYLINDER (W/Replaceable Tube) HYDRAULIC SYSTEM

1

6586671

CYLINDER, LIFT Ref. 2-14 - Was 6592962 - A

2

6586674

TUBE, CASE CYL LIFT cylinder - Was 6592621 - A

3

92D12

NUT Was 86D000012B - B

4

6661694

PISTON Was 6504931 - A

5

6516231

SEAL

6

54K30118

O-RING Was 25K030118B - A

7

6529384

TUBE Was 6592615 - A

8

6514501

SPACER

9

54K40124

O-RING Was 25K040124B - A

10

73K224

RING back-up

11

6539323

HEAD Was 6532702 - A

12

6667324

SEAL rod - Was 6665184 - A

13

6665208

SEAL wiper

14

6539304

SHAFT, ROD CYL LIFT Was 6592884 - A

15

82K136

O-RING Was 58K136 - B

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered

17

PLUG NLA - W/Ref. 16 - flat boss face - Was 47K000005B - A

17

90KV5

PLUG W/Ref. 16 - tapered boss face

18

7008781

SEAL, QUAD

19

7137769

KIT, SEAL Ref. 3, 5, 6, 12, 13, 15, & 19 - Was 6803329 - A
