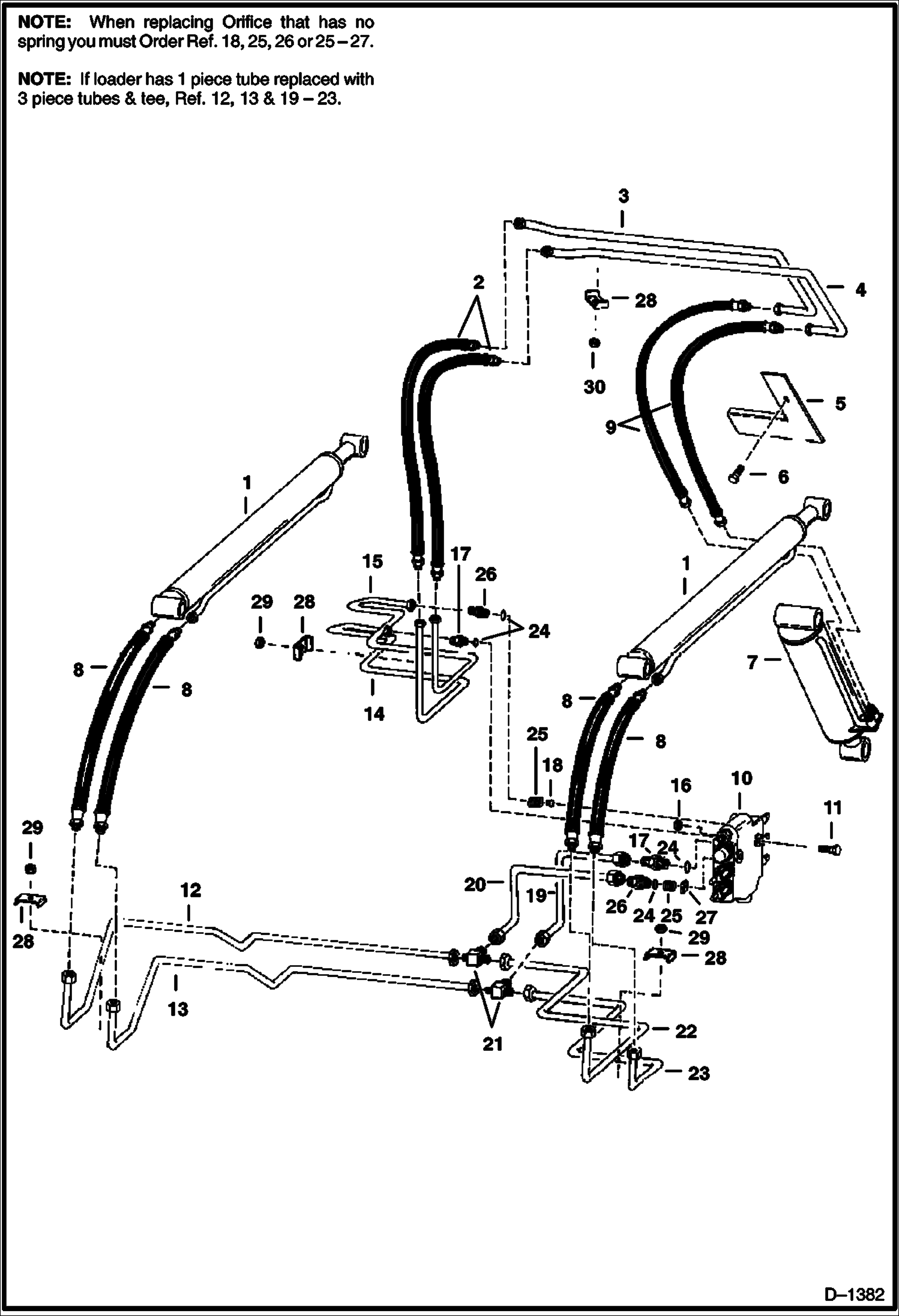

Запчасти Bobcat 600s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ C6942 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6541094

HOSE

3

6557780

TUBE

4

6557781

TUBE

5

6553422

COVER

6

84G3724

BOLT

7

CYLINDER See Illustration TILT CYLINDER/ C2001 TILT

8

6553244

HOSE

9

6557426

HOSE

10

6557603

VALVE See Illustration HYDRAULIC VALVE/ B20667 HYDRAULIC

11

17C536

BOLT

12

6561886

TUBE See Note

13

TUBE NLA - SEE NOTE - Was 6561885 - A

14

6557783

TUBE

15

6557782

TUBE

16

91D5

NUT 5 Was 81D000005B

17

731793

CONNECTR W/Ref. 24

18

ORIFICE NLA - Order Ref. 18 & 25-27 - See Note

18

6560939

ORIFICE .083 - See Note

19

6560133

TUBE See Note

20

6560130

TUBE See Note

21

6560136

TEE See Note

22

TUBE NLA - SEE NOTE - Was 6561888 - A

23

TUBE NLA - SEE NOTE - Was 6561887 - A

24

79K8

O RING 10 Was 91F000006B - A

25

6560938

SPRING See Note

26

ADAPTER NLA - SEE NOTE - Was 6560932 - A

27

ORIFICE NLA - .126 - See Note - Was 6560940 - A

28

6502203

CLAMP

29

85D6

NUT, 5

30

59D6

NUT
