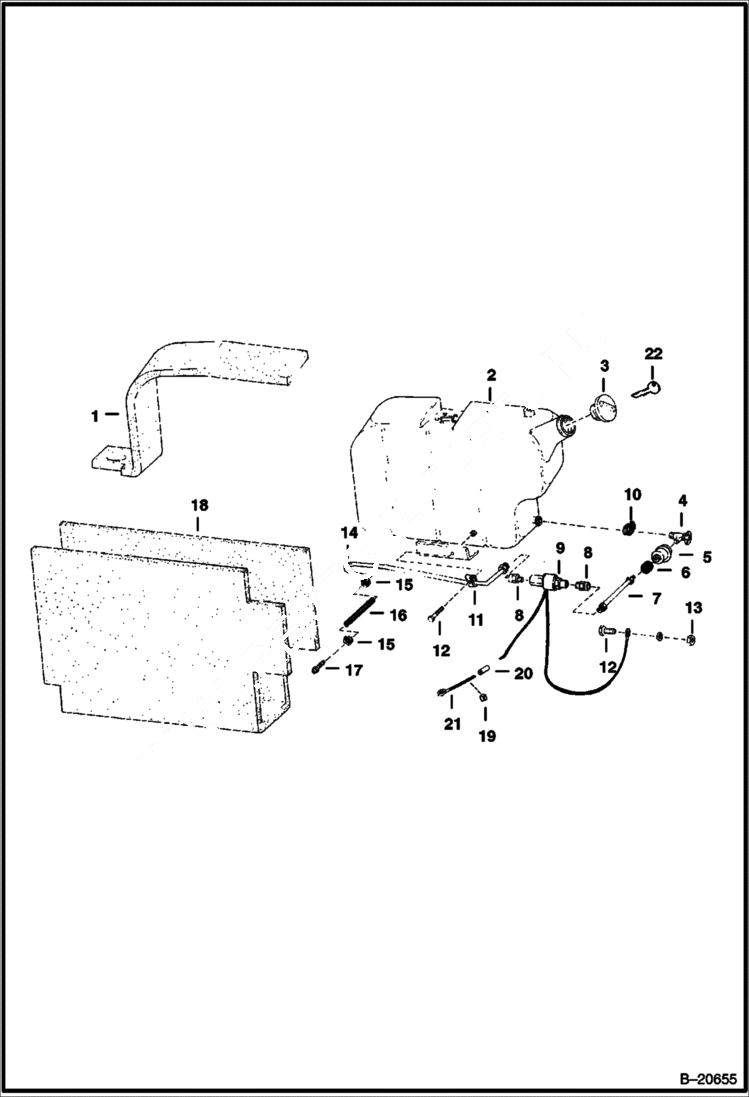

Запчасти Bobcat 600s FUEL SYSTEM (15001 & Above) MAIN FRAME

1

6555909

INSULATION

2

TANK NLA - Order 6560211 - Was 6557743 - A

3

6632468

CAP fuel - Was 6555717 - A

3

CAP NLA - locking - W/Ref. 22 - Code GC020 - Was 6654373 - A

3

6662770

CAP locking - W/Ref. 22 - Code PK510

4

6512138

VALVE

5

6512106

ELEMENT

6

GROMMET Was 565073 - A

7

TUBE NLA - Was 6560634 - A

8

CONNECTOR NLA - Was 59F000004B - A

9

7024822

SOLENOID, FUEL Was 6559117

10

42HS8

CLAMP Was 6514005 - A

11

30H19

CLIP

12

17C512

BOLT 5

13

81D5

NUT

14

6560631

TUBE

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

6577821

HOSE Was 6560635 - D

17

6505813

CONNECTOR

18

6555908

INSULATION

19

6514850

CLIP

20

614142

SLEEVE 10

21

30R104

TERMINAL

22

6654374

KEY Code GC020

22

6587458

KEY Code PK510
