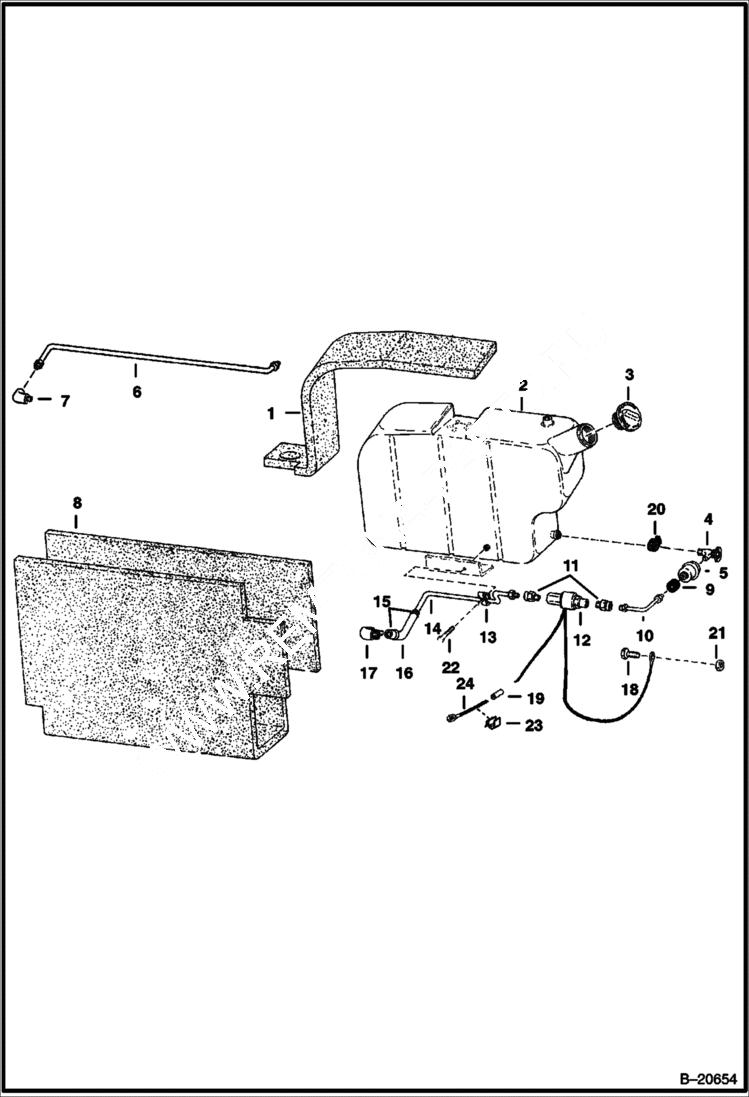

Запчасти Bobcat 600s FUEL SYSTEM (S/N 14999 & Below) MAIN FRAME

1

6555909

INSULATION

2

TANK NLA - Order 6560211 - Was 6557743 - A

3

6632468

CAP fuel - Was 6555717 - A

4

6512138

VALVE fuel

5

6512106

ELEMENT fuel

6

6557528

TUBE fuel

7

62F4

ELBOW

8

6555908

INSULATION

9

GROMMET Was 565073 - A

10

6559152

TUBE

11

CONNECTOR NLA - Was 59F000004B - A

12

7024822

SOLENOID, FUEL Was 6559117

13

30H19

CLIP

14

TUBE NLA - Was 6559238 - A

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

6577821

HOSE Was 6557832 - A

17

6515156

CONNECTOR

18

17C512

BOLT 5

19

614142

SLEEVE 10

20

42HS8

CLAMP Was 6514005 - A

21

85D5

NUT 5

22

10C512

BOLT Was 6553808 - A

23

6514850

CLIP

24

30R104

TERMINAL
