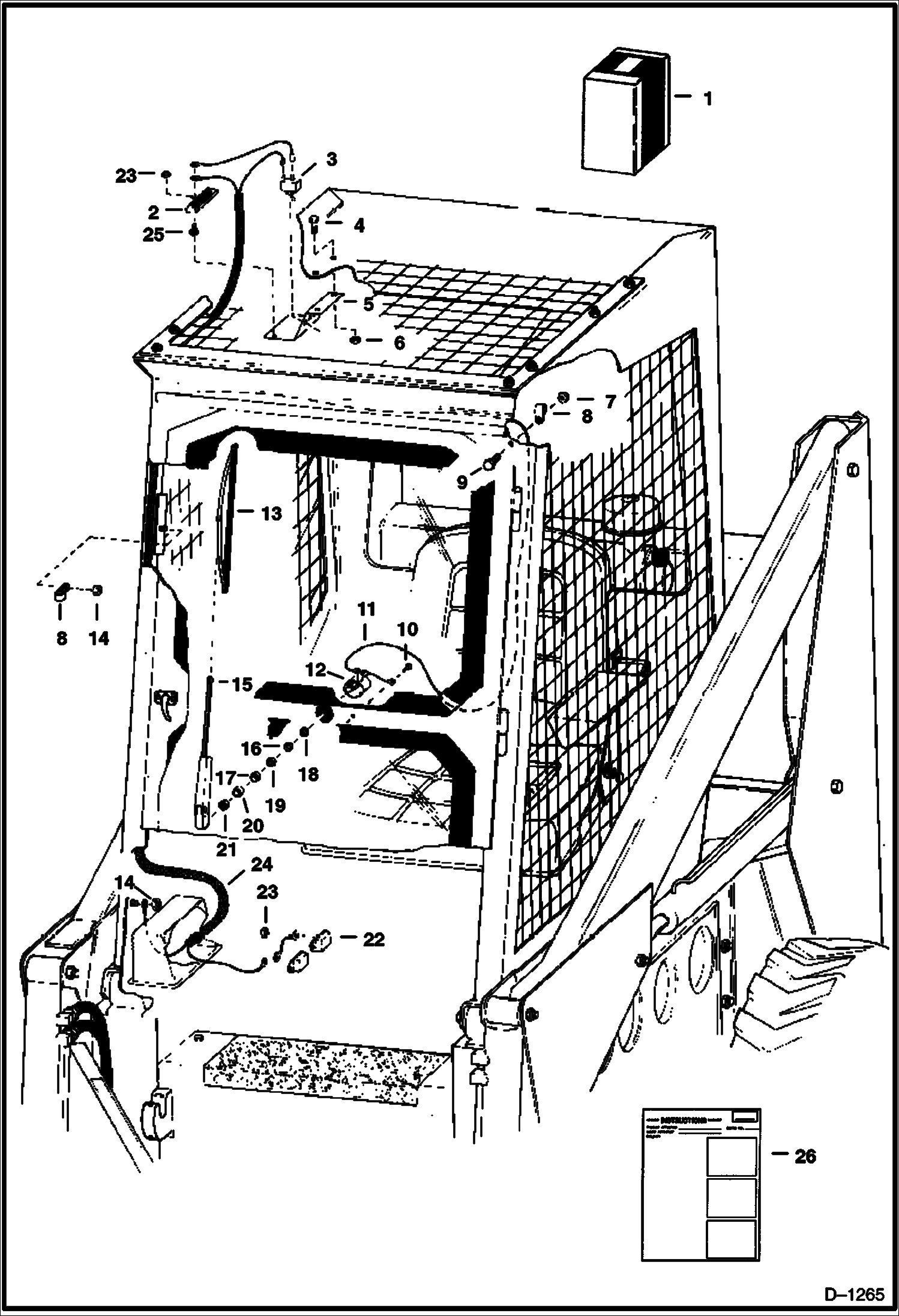

Запчасти Bobcat 600s WINDSHIELD WIPER ACCESSORIES & OPTIONS

1

KIT NLA - windshield wiper - Order Ref. 2 - 13 & 15 - 26

2

6519847

BLOCK connector

3

6515521

SWITCH toggle

4

17C408

BOLT

5

6552905

PLATE switch

6

61D4

NUT 5

7

61D6

NUT 5

8

30H27

CLAMP

9

17C612

BOLT 5

10

WIRE NLA

11

SCREW NLA - Was 81G000804B - A

12

6653394

MOTOR wiper - W/Ref. 16 - 21 - Was 1550696 - A

13

1550697

BLADE wiper

14

81D6

NUT

15

1744552

ARM wiper - Was 852454B - A

16

WASHER NSS - cup

17

COLLAR NSS

18

WASHER NSS - rubber

19

NUT NSS

20

ADAPTER NSS

21

NUT NSS

22

6519746

BREAKER circuit

23

12D10

NUT

24

6552984

HARNESS wiring

25

87G1008

SCREW

26

6549754

INSTRUCTIONS
