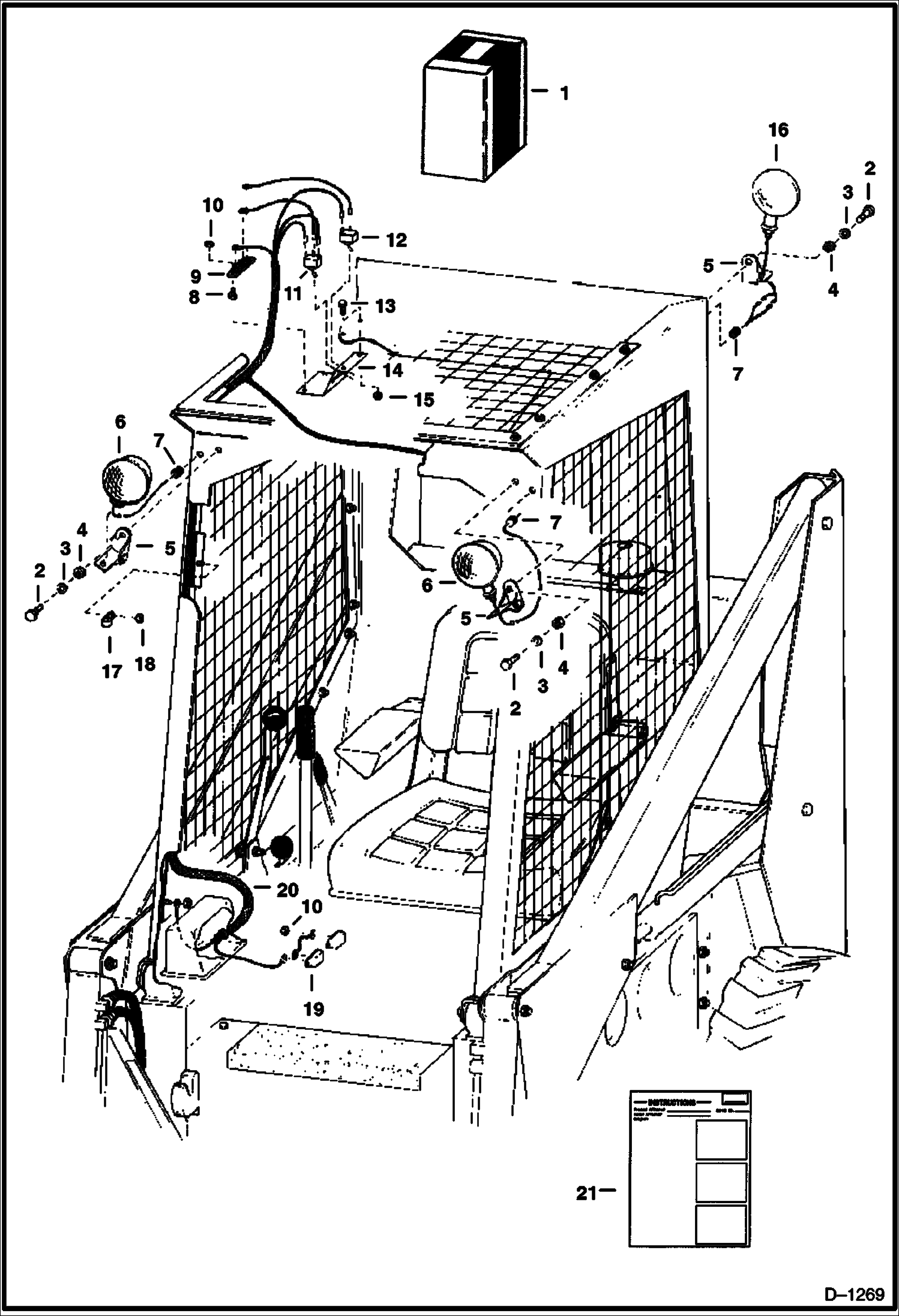

Запчасти Bobcat 600s LIGHTS ACCESSORIES & OPTIONS

1

KIT NLA - lights - Order Ref. 2 - 21 - Was 6552991 - A

2

17C616

BOLT 5

3

25E17

WASHER 5

4

61D6

NUT 5

5

BRACKET NLA - Light - Was 6547315 - A

6

HEADLIGHT NLA - Front - Order 6644960 or 6644961 - Was 6517676 - A

6

LENS NLA - Was 6515219 - A

6

BULB NLA - Purchase Locally

7

1010102

GROMMET

8

87G1008

SCREW

9

6519247

CONNECTOR connector

10

12D10

NUT

11

6515522

SWITCH toggle

12

6515521

SWITCH toggle

13

17C408

BOLT

14

6552905

PLATE switch

15

61D4

NUT 5

16

6519340

LIGHT rear

16

877752

4411 BULB

16

6655055

BULB Was 506475B - A

17

30H27

CLAMP

18

81D6

NUT

19

6519746

BREAKER circuit

20

6552984

HARNESS

21

6549757

INSTRUCTIONS
