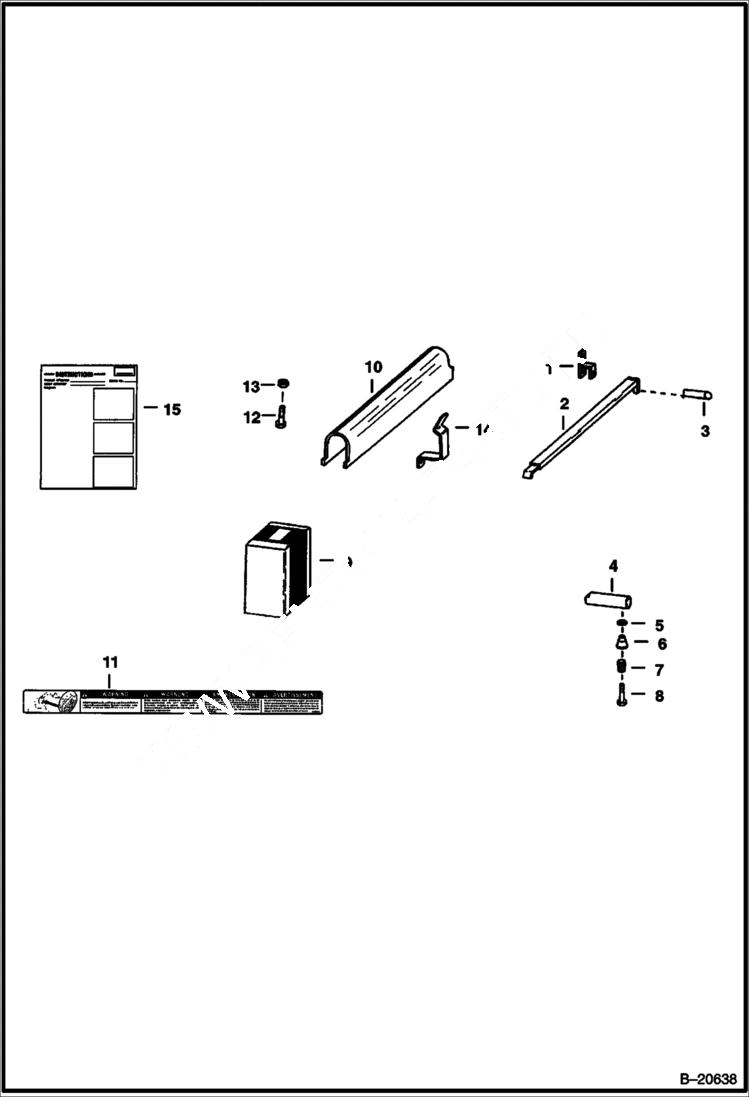

Запчасти Bobcat 600s LIFT ARM STOPS ACCESSORIES & OPTIONS

1

6504729

BRACKET lock support

2

LOCK NLA - Order Ref. 6563501

3

6515499

PIN

4

6541372

PIN lock - Cab Mounted

5

6541964

SPACER

6

RETAINER NLA - lock pin - Was 6541515 - A

7

6541514

SPRING

8

17C652

BOLT

9

KIT NLA - lift arm cylinder stop - Ref. 1 - 3 Order 6563501

9

KIT NLA - lift arm stop - Ref. 4 - 8 - Order 6563501

9

6563501

KIT lift arm stop - Ref. 10 - 15

10

6563449

STOP W/Ref. 11

11

6563423

DECAL

12

17C616

BOLT 5

13

85D6

NUT, 5

14

6563603

BRACKET Lift Arm Stop Mount

15

6566056

INSTRUCTIONS
