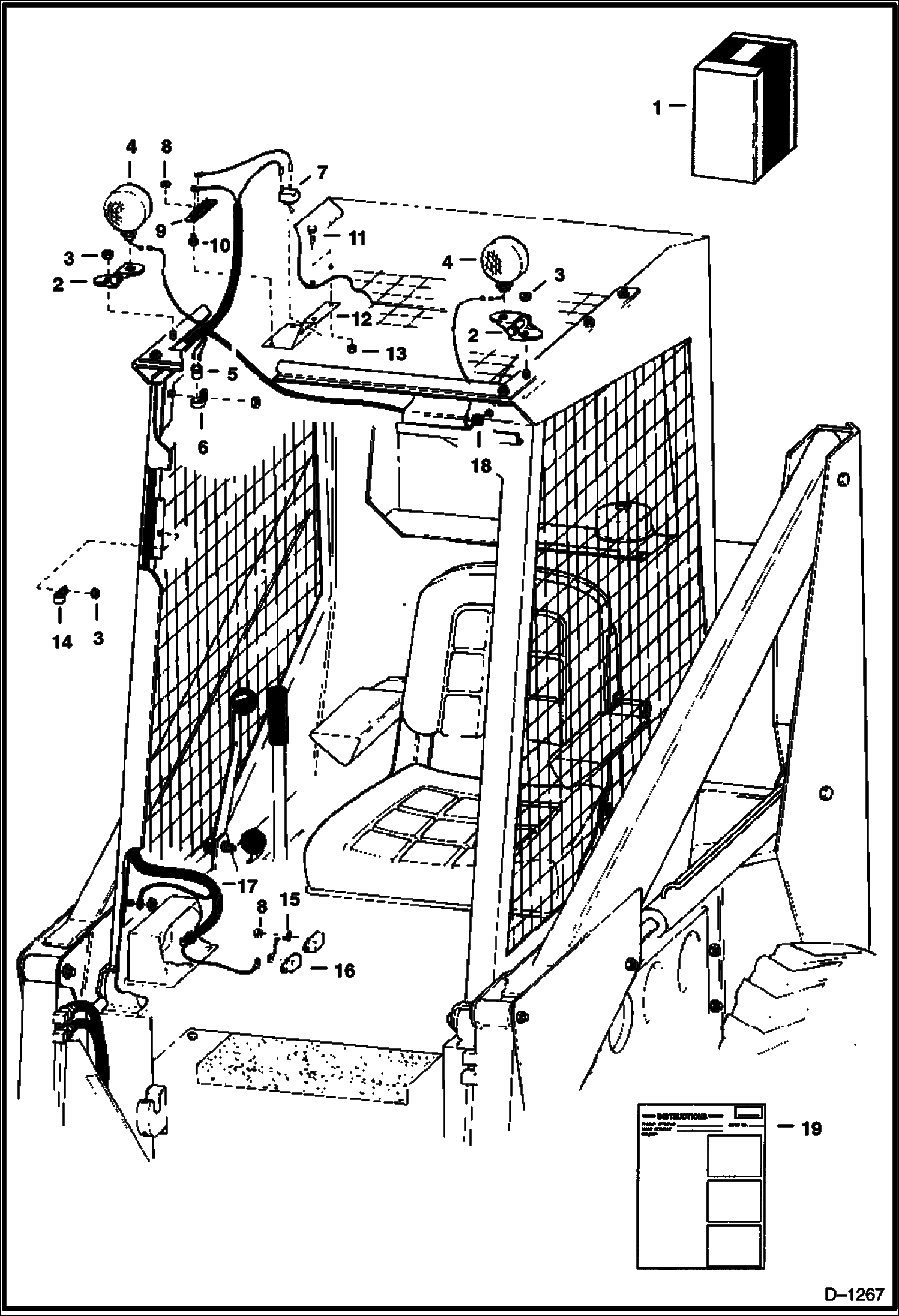

Запчасти Bobcat 600s FLASHER LIGHTS ACCESSORIES & OPTIONS

1

KIT NLA - flasher light - Order Ref. 2 - 19

2

6547315

BRACKET light

3

61D6

NUT 5

4

6517516

LIGHT flasher - Was 6557903 - A

4

LENS NLA - amber

4

BULB NLA

5

6557904

FLASHER

6

CLAMP NLA - Was 6H000036B - A

7

6515521

SWITCH

8

12D10

NUT

9

6519247

CONNECTOR connector

10

87G1008

SCREW

11

17C408

BOLT

12

6552905

PLATE

13

61D4

NUT 5

14

30H27

CLAMP

15

WIRE NLA - jumper

16

6519746

BREAKER circuit

17

6552984

HARNESS wire

18

1010102

GROMMET

19

6549755

INSTRUCTIONS
