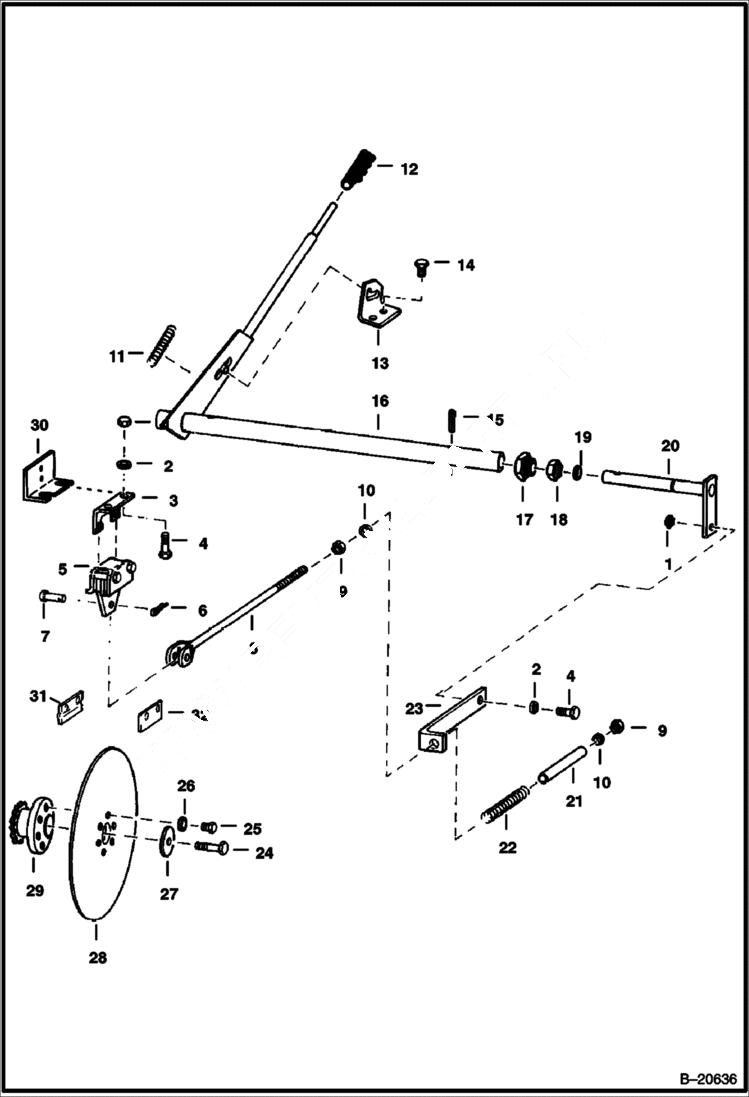

Запчасти Bobcat 600s DISC BRAKE ACCESSORIES & OPTIONS

1

81D6

NUT

2

25E18

WASHER

3

6547161

BRACKET

4

17C616

BOLT 5

5

CALIPER NLA - Was 6510279 - A

6

1F208

PIN cotter

7

2F4051

PIN clevis

8

6547152

LINKAGE brake

9

61D4

NUT 5

10

874767

WASHER

11

6510000

SPRING

12

6547189

GRIP

13

6547157

LOCK brake lever

14

17C610

BOLT

15

672985

PIN roll

16

6547141

LEVER brake

17

6547156

BUSHING

18

NUT NLA - Was 6509809 - A

19

25K30022

O RING 10

20

6547149

ARM brake lever

21

6547154

SPACER spring

22

6540263

SPRING

23

6547155

BRACKET spring

24

BOLT NLA - Was 18C000626B - A

25

17C410

BOLT 10

26

6E4

WASHER 10 shakeproof

27

774813

WASHER

28

6547158

DISC brake

29

6547162

SPROCKET hydrostatic drive

30

6547160

BRACKET R.H.

30

6547334

BRACKET L.H.

31

6656027

PAD brake

32

6656028

PAD brake
