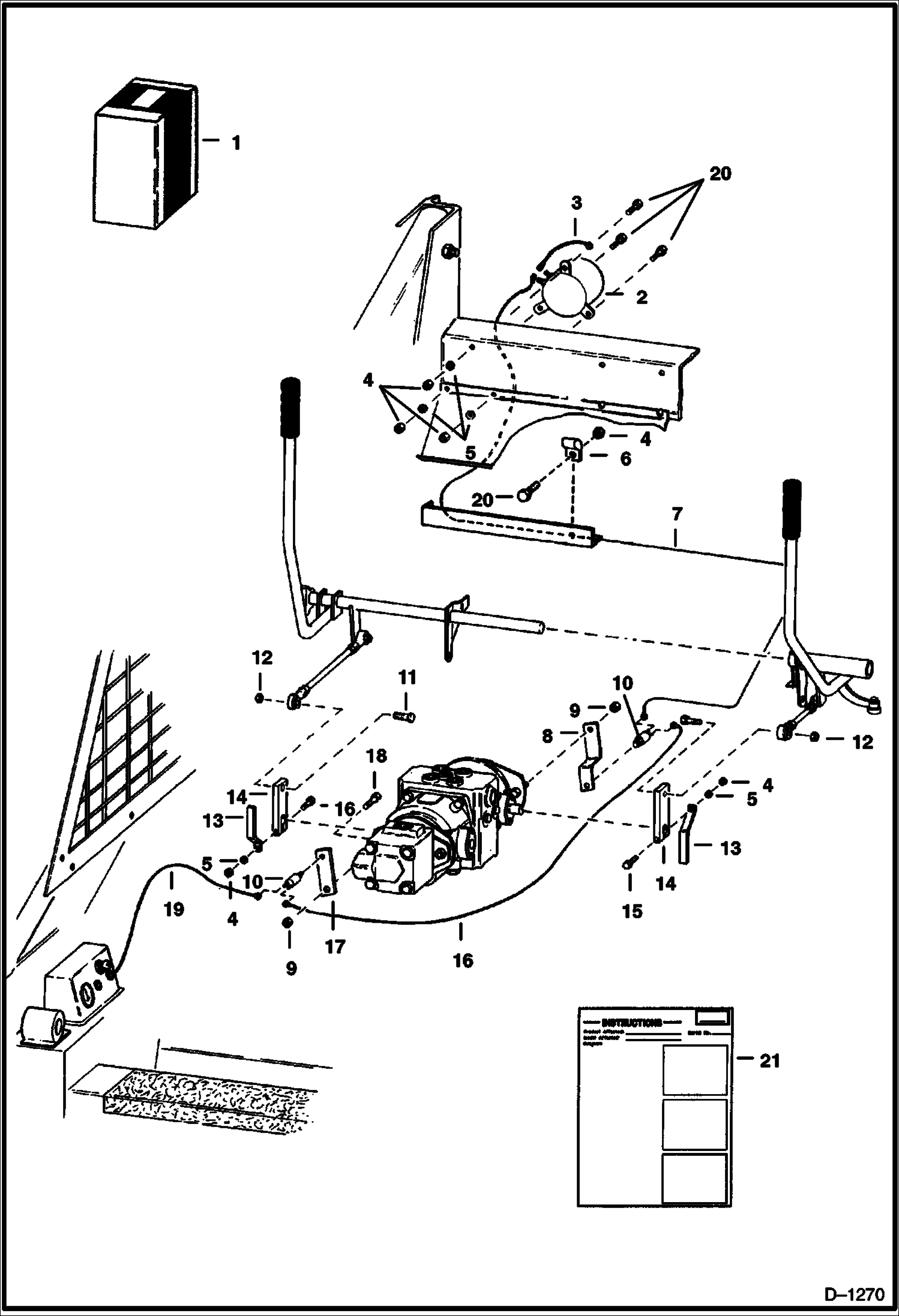

Запчасти Bobcat 600s BACK-UP ALARM ACCESSORIES & OPTIONS

1

6553003

KIT back-up alarm - Ref. 2 - 2, 13 & 16 - 21

2

6640795

ALARM Was 6519359 - A

3

WIRE NLA - ground

4

61D4

NUT 5

5

25E14

WSHR

6

CLIP NLA - wire - Was 3H000007B - A

7

WIRE NLA

8

6547345

BRACKET L.H.

9

61D8

NUT 5

10

6632973

SWITCH Was 600259B - A

11

17C628

BOLT

12

61D6

NUT 5

13

6541950

ACTUATOR switch

14

6542875

ARM pump control

15

17C428

BOLT

16

WIRE NLA

17

6547348

BRACKET R.H.

18

17C824

BOLT 5

19

WIRE NLA

20

17C412

BOLT 5

21

6549756

INSTRUCTIONS
