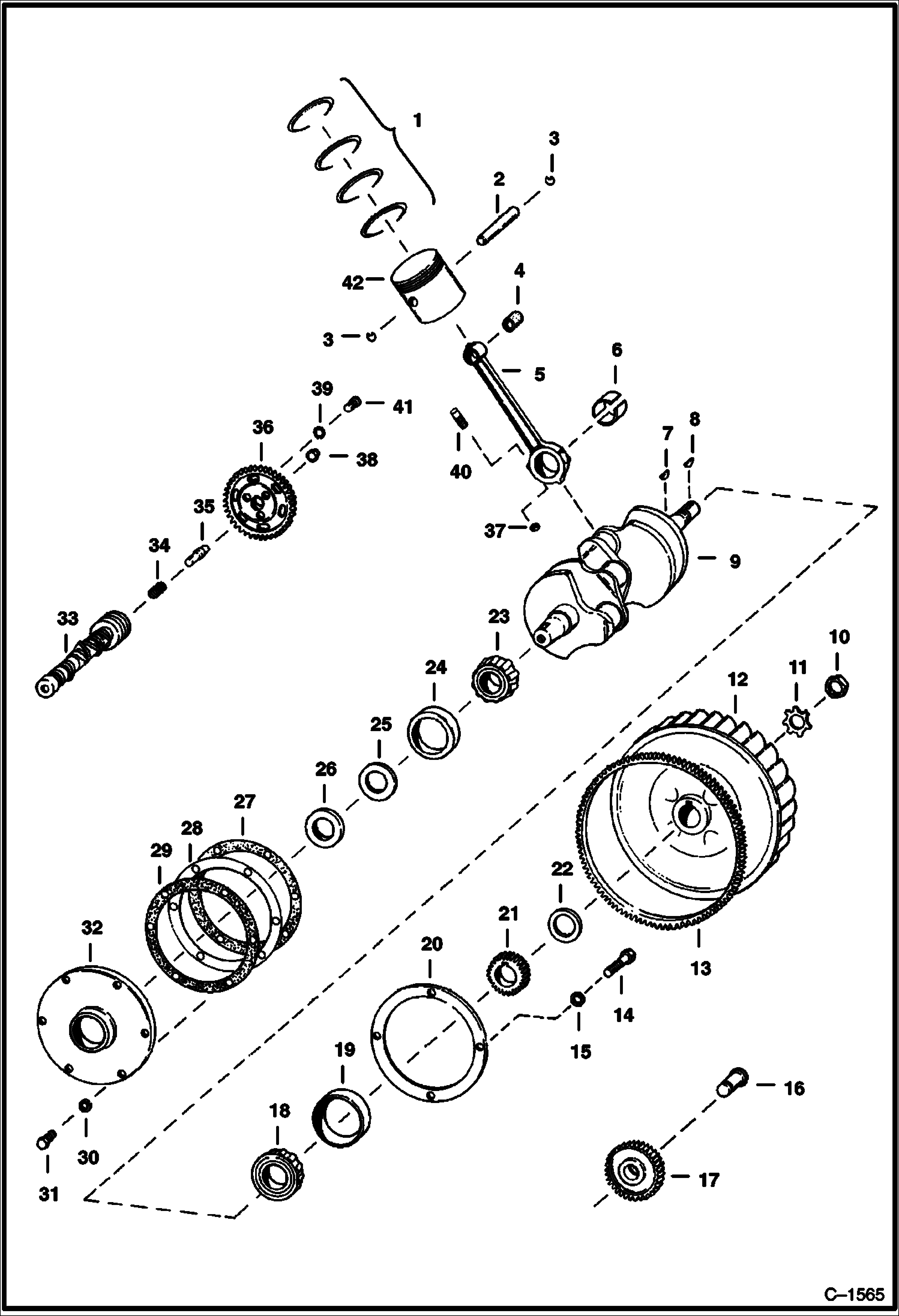

Запчасти Bobcat 600s INTERNAL ENGINE PARTS POWER UNIT

1

6516464

RINGS See BTI183 std. - 4 Ring

1

RINGS NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A

1

6516466

RINGS .020 (0,51mm) - 4 Ring

1

6516467

RINGS .030 (0,76mm)- 4 Ring

1

RINGS Trichrome - Std. NLA - trichrome - std - Was 6516468 - A

1

6516469

RINGS Trichrome - .010 (0,25mm)

1

6516470

RINGS Trichrome - .020 (0,51mm) - complete set

1

RINGS NLA - trichome - .030 (0,76mm) - Was 6516471 - A

1

6630712

SET RINGS See BTI218 Std. - 4 Ring

1

6630713

SET RINGS See BTI218 .010 (0,25MM) - 4 RING

1

6630714

SET RINGS See BTI218 .020 (0,51MM) - 4 RING

1

6630715

SET RINGS See BTI218 .030 (0,76MM) - 4 RING

1

RING SET NLA - .040 (1,02mm) - Was 6656405 - A

2

6516476

PIN piston - Std.

2

PIN NLA - Use Std. or .010 (0,25mm) Oversize

2

6517474

PIN piston - .010 (0,25mm)

3

6516463

RETAINER

4

6516462

BUSHING piston pin

5

6517472

ROD connecting - W/Ref. 4, 37 & 40

6

6517475

BEARING Std. - one bearing

6

BEARING NLA - .001 (0,03 mm) - one bearing - Was 6517476 - A

6

BEARING NLA - .002 (0,05mm) - Was 6517477 - A

6

6517478

BEARING .010 (0,25mm)

6

6517479

BEARING .020 (0,51mm)

7

KEY NLA - woodruff - Was 6J506 - A

8

6J1011

KEY woodruff

9

CRANKSHAFT NLA - W/Ref. 7, 8, 18, 19, 23 & 24 - Was 6510277 - A

10

6516449

NUT

11

6516448

WASHER

12

FLYWHEEL NLA - W/Ref. 13 - Was 6510871 - A

13

6516682

RING GEAR ring

14

7G512

SCREW flat head

15

6E5

WASHER

16

STUD NLA - idler gear - Was 6510869 - A

17

6519850

GEAR

18

6516452

BEARING main - W/Ref. 19

19

CUP NSS - bearing

20

6510826

PLATE

21

6516451

GEAR

22

6516450

SLINGER oil

23

872144

BEARING main - W/Ref. 24

24

CUP NSS - bearing

25

6516454

RETAINER oil seal

26

6511309

SEAL oil

27

6516456

GASKET .003 (0,08mm) thk.

28

6516457

SHIM .013 (0,33mm) thk.

29

6516458

GASKET .006 (0,15mm) thk.

30

4E6

WASHER

31

17C620

BOLT

32

6511300

PLATE

33

6516517

CAMSHAFT

34

6516518

SPRING

35

6516519

PLUNGER thrust

36

6516520

GEAR

37

86D5

NUT

38

6516522

BUTTON

39

6516521

WASHER

40

6516461

BOLT

41

17C516

BOLT

42

6630708

PISTON - W/Pin See BTI183 Std. - 4 Ring - Ws 6516472 - A

42

6630709

PISTON - W/Pin .010 (0,25mm) - ring - Was 6516473 - A

42

6630710

PISTON - W/Pin .020 (0,51mm) - 4 Ring - Was 6516474 - A

42

PISTON NLA - .030 (0,76mm) - 4 Ring - Was 6516475 - A

42

6630708

PISTON - W/Pin See BTI218 Std. - 4 Ring - one piston

42

6630709

PISTON - W/Pin See BTI218 .010 (0,25MM) - 4 RING

42

6630710

PISTON - W/Pin See BTI218 .020 (0,51MM) - 4 RING

42

6630711

PISTON - W/Pin See BTI218 .030 (0,76MM) - 4 RING

42

PISTON NLA - .040 (1,07mm) - Was 6656406 - A
