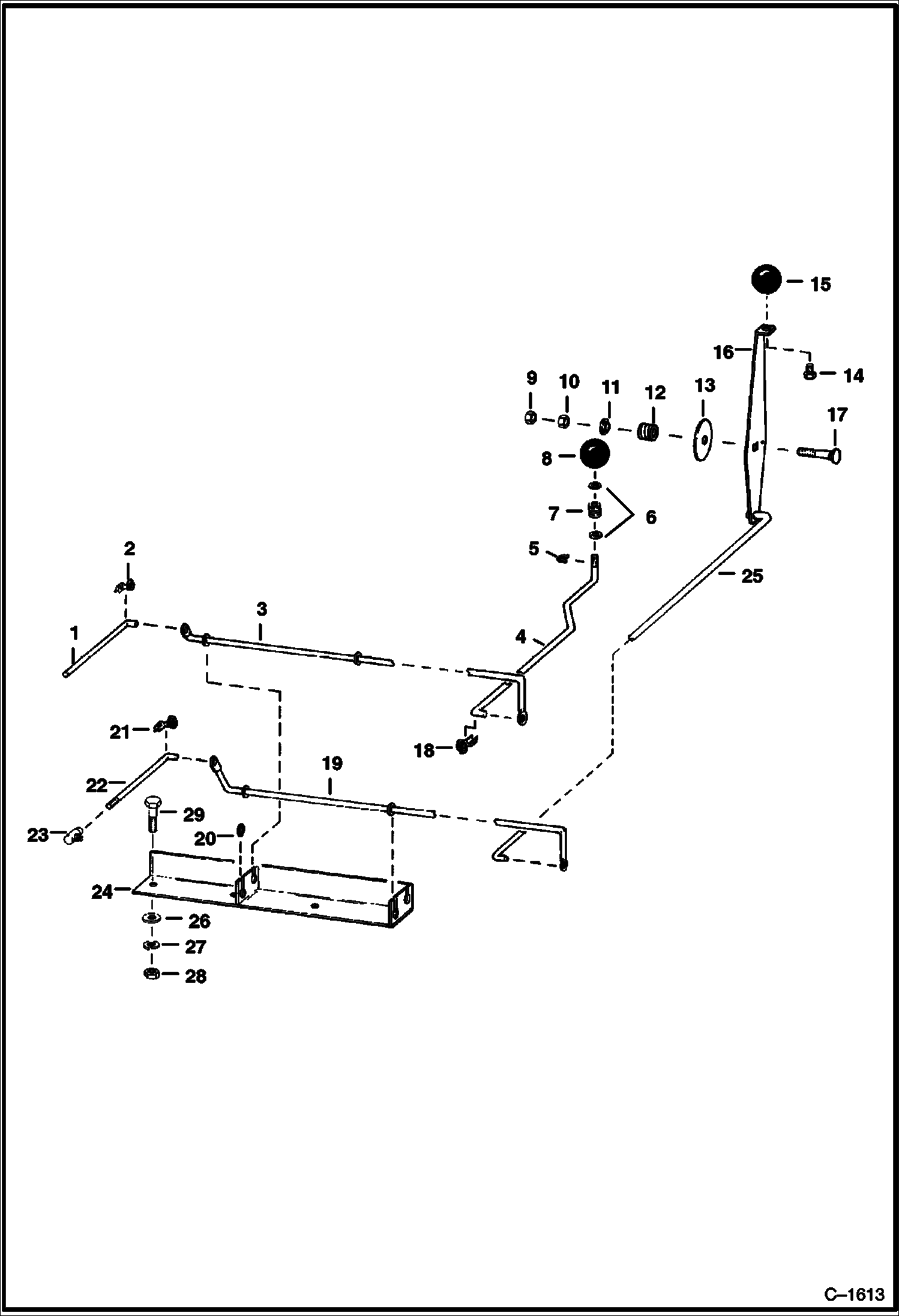

Запчасти Bobcat 600s THROTTLE & CHOKE POWER UNIT

1

6542824

ROD

2

CLIP NLA - Was 6519478 - A

3

6542823

JACKSHAFT

4

6542820

ROD

5

6519481

SNAP RING retaining

6

25E16

WSHR

7

6510000

SPRING

8

6519552

KNOB

9

7D6

NUT

10

61D6

NUT 5

11

6505623

WASHER

12

6704453

SPRING Was 6503387 - A

13

6503388

BLOCK

14

18C512

BOLT

15

KNOB NLA - Was 641084 - A

16

6542819

LEVER

17

SCREW NLA - carriage - Was 7C636 - A

18

6519480

CLIP

19

6542822

JACKSHAFT throttle

20

6519484

GROMMET

21

6519479

CLIP

22

6542825

ROD throttle - Gasoline

22

6547342

ROD throttle - LPG Option

23

6515194

BALL JOINT

24

6542816

BRACKET

25

6544187

ROD

26

25E13

WASHER 5

27

8E4

WASHER

28

61D4

NUT 5

29

17C408

BOLT
