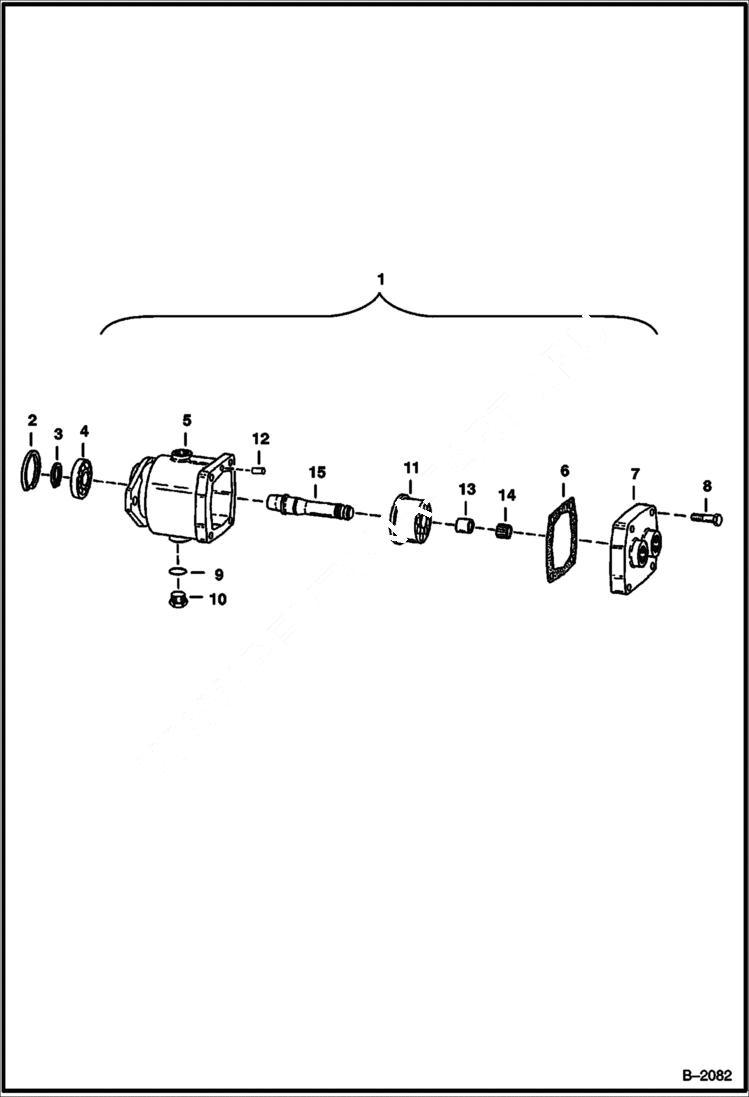

Запчасти Bobcat 600s HYDROSTATIC MOTOR (S/N 1099 & Above) HYDROSTATIC SYSTEM

1

MOTOR NLA - fixed - W/Ref. 2 - 15 - Was 6552900 - A

2

669863

RING, SNAP

3

711298

RING

4

711303

BEARING

5

HOUSING NLA

6

6513287

GASKET

7

PLATE NLA - end

8

17C632

BOLT 5

9

79K10

O RING 10

10

24K7

PLUG

11

6519312

ROTATING GROUP

12

214028

PIN

13

6519349

SLEEVE

14

882574

BRG

15

6513285

SHAFT
