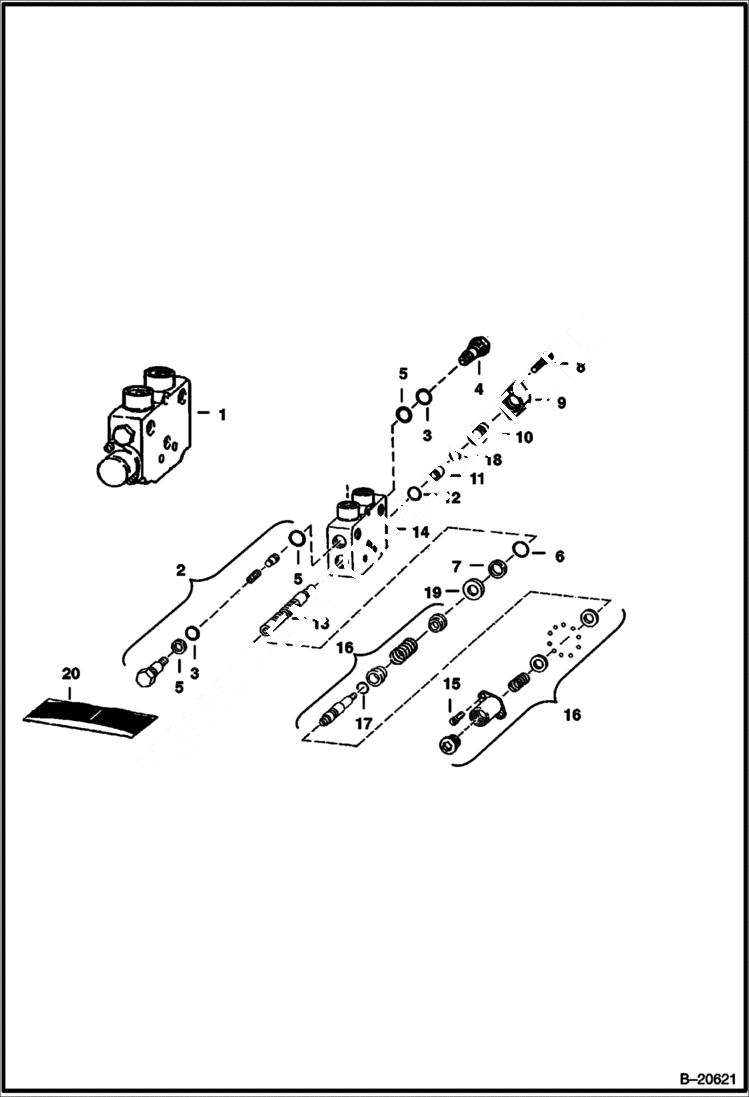

Запчасти Bobcat 600s LIFT SECTION (Gresen V20) HYDRAULIC SYSTEM

1

6659260

SECTION

2

6650695

LOAD CHECK

3

O-RING NSS

4

6650694

ANTI-CAV. VALVE

5

O-RING NSS

6

6659529

O-RING

7

SEAL NLA - Was 6651325 - A

8

89G408

BOLT

9

6659527

PLATE

10

6659526

SPACER

11

6659528

SLEEVE

12

6659530

O-RING

13

SPOOL NSS

14

HOUSING NSS

15

7030462

BOLT Was 89G414 - A

16

6659344

POSITIONER

17

O-RING NSS

18

6659529

O-RING

19

6650693

RETAINER

20

6650691

SEAL KIT Ref. 3 & 5

20

6659560

SEAL KIT Ref. 6, 7, 12 & 17 - 19
