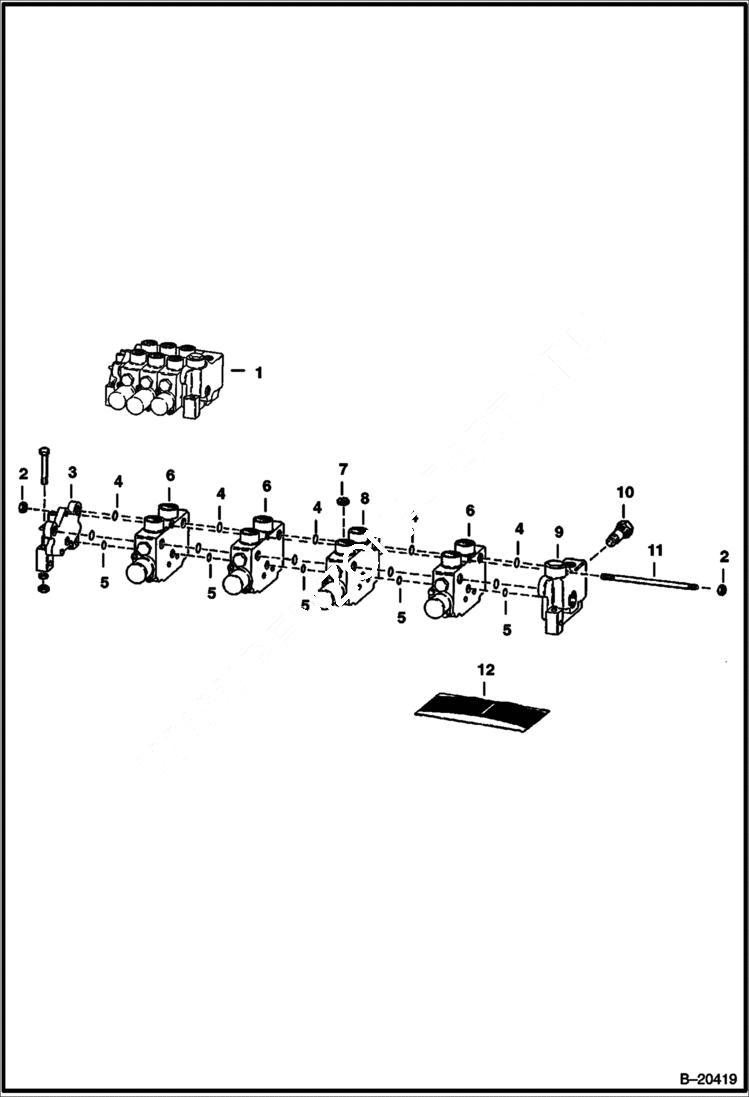

Запчасти Bobcat 600s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE See BTI242 NLA - 3 spool - Without Relief Valve - Was 6553027 - A

1

VALVE See BTI242 NLA - 4 spool - Without Relief Valve - Was 6553028 - A

2

61D6

NUT 5

3

COVER See BTI242 NLA - left - Was 6519933 - A

4

O-RING NSS

5

O-RING NSS

6

SECTION See Illustration AUXILIARY, SECONDARY AUXILIARY & TILT CONTROL SECT/ B20630 See BTI242 NLA - AUXILIARY, SEC. AUXILIARY, TILT CONTROL - WAS 6519936 - A

7

ORIFICE NLA - .156'' (3.95mm) - Was 6598844 - A

8

SECTION See Illustration LIFT CONTROL SECTION/ B1539 See BTI242 NLA - LIFT - WAS 6552308 - A

9

COVER See Illustration INLET SECTION/ B1541 See BTI242 NLA - INLET - Was 6512244 - A

10

RELIEF VALVE NLA - Was 6510758 - A

11

17C6128

BOLT 3 Spool Valve

11

5201375

STUD 4 Spool Valve

12

6660750

SEAL KIT seal 2 & 3 section valve - W/Ref. 4, 5 - Was 6511040 - A

12

6511041

SEAL KIT seal 4 section valve - W/Ref. 4, 5
