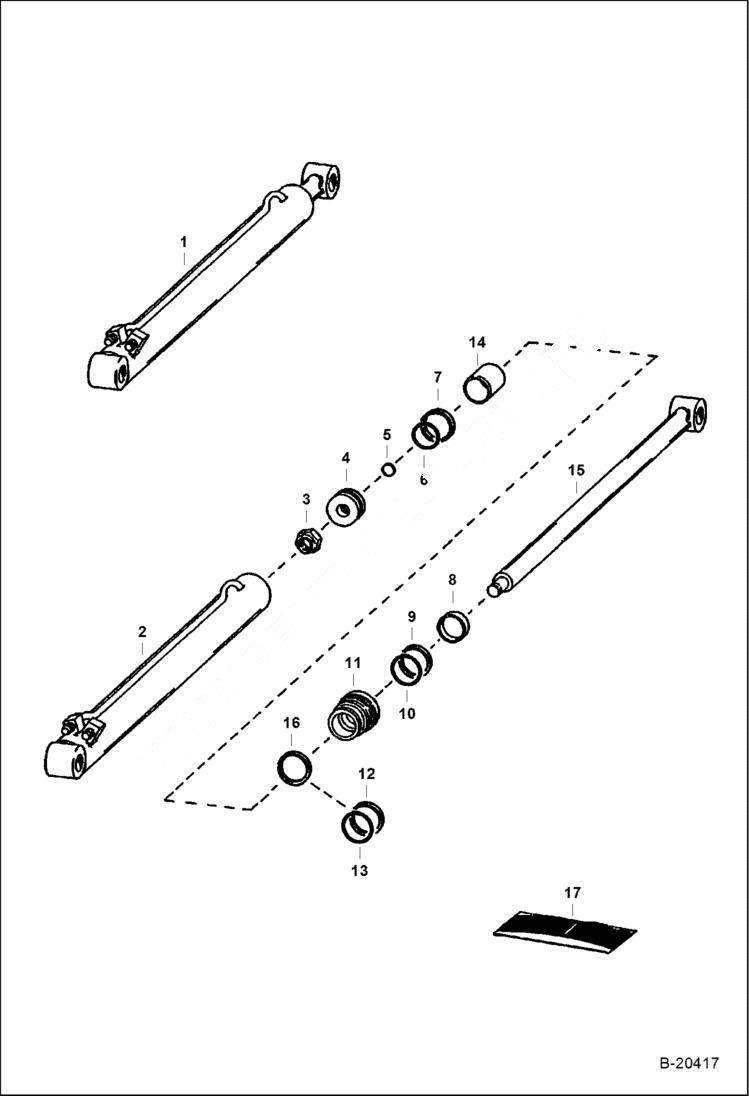

Запчасти Bobcat 600s LIFT CYLINDER HYDRAULIC SYSTEM

1

6540229

CYLINDER Ref. 2 - 15

2

CASE NLA - Was 6592037 - A

3

92D12

NUT Was 86D000012B - B

4

6558196

PISTON

5

O-RING NSS

6

54K30118

O-RING Was 25K030118B - A

7

6516231

SEAL piston

8

6665208

SEAL wiper

9

6667324

SEAL rod - Was 6665184 - A

10

82K136

O-RING Was 58K136 - B

11

6539323

HEAD Was 6504932 - A

12

73K224

RING

13

25K40124

O RING 10

14

6514501

SPACER

15

6540219

ROD

16

7008781

SEAL, QUAD

17

7137769

KIT, SEAL Ref. 3, 5-10, & 16 - Was 6803329 - A
