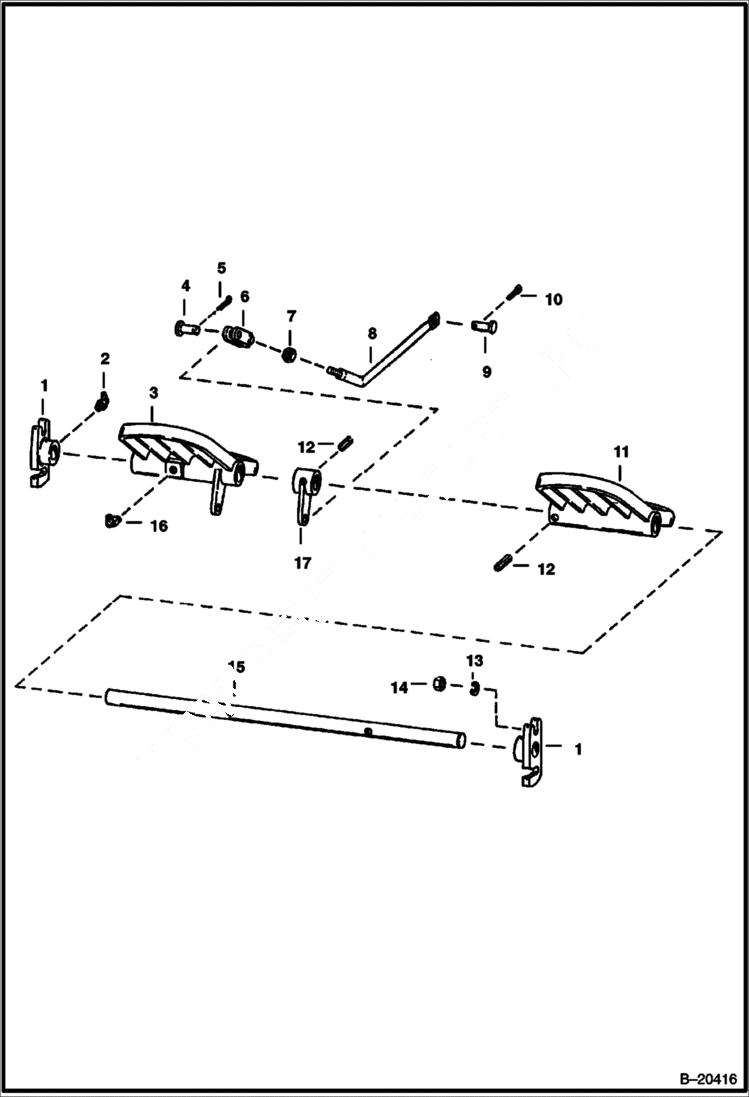

Запчасти Bobcat 600s CONTROL PEDALS HYDRAULIC SYSTEM

1

6541277

PIVOT

2

10H35

FITTING, GREASE 10

3

PEDAL NLA - tilt - Was 6540000 - A

4

2F6106

PIN

5

1F316

PIN cotter

6

6508041

YOKE

7

8D6

NUT 5

8

6540030

ROD

9

1304227

PIN

10

1F308

PIN, COTTER

11

6540002

PEDAL lift

12

668312

PIN ROLL roll

13

25E17

WASHER 5

14

81D6

NUT

15

ROD NLA - Was 6509751 - A

16

12H25

FITTING

17

ARM NLA - Was 6509996 - A
