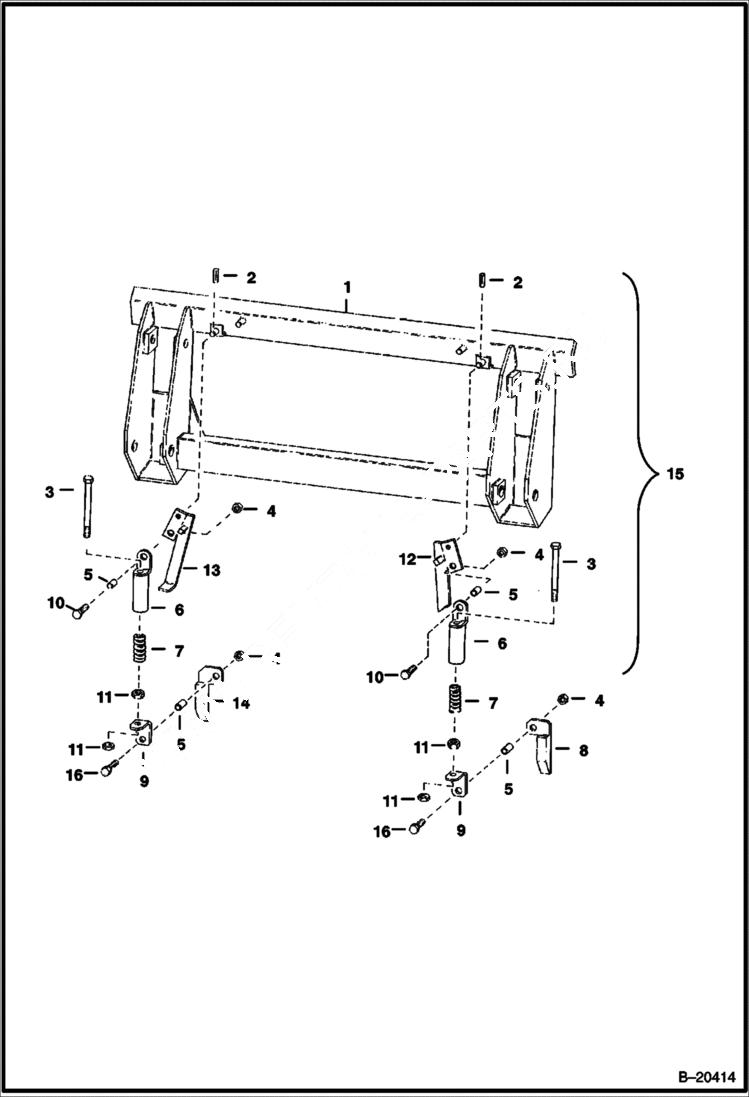

Запчасти Bobcat 600s BOB-TACH MAIN FRAME

1

FRAME SALES - Order 6547578 From Sales - Was 6547578 - A

2

PIN groove - Was 15J316 - A

3

17C880

BOLT

4

61D6

NUT 5

5

6541799

SPACER

6

6541796

BRACKET

7

6540263

SPRING

8

6547625

WEDGE locking - R.H.

9

6540262

ANGLE

10

17C624

BOLT 5

11

61D8

NUT 5

12

6544409

LEVER R.H.

13

6544408

LEVER L.H.

14

6547628

WEDGE locking - L.H.

15

BOB-TACH See Illustration DECALS/ C1932 NLA - ALSO ORDER 6504370 DECAL - Was 6547579 - A

16

17C620

BOLT
