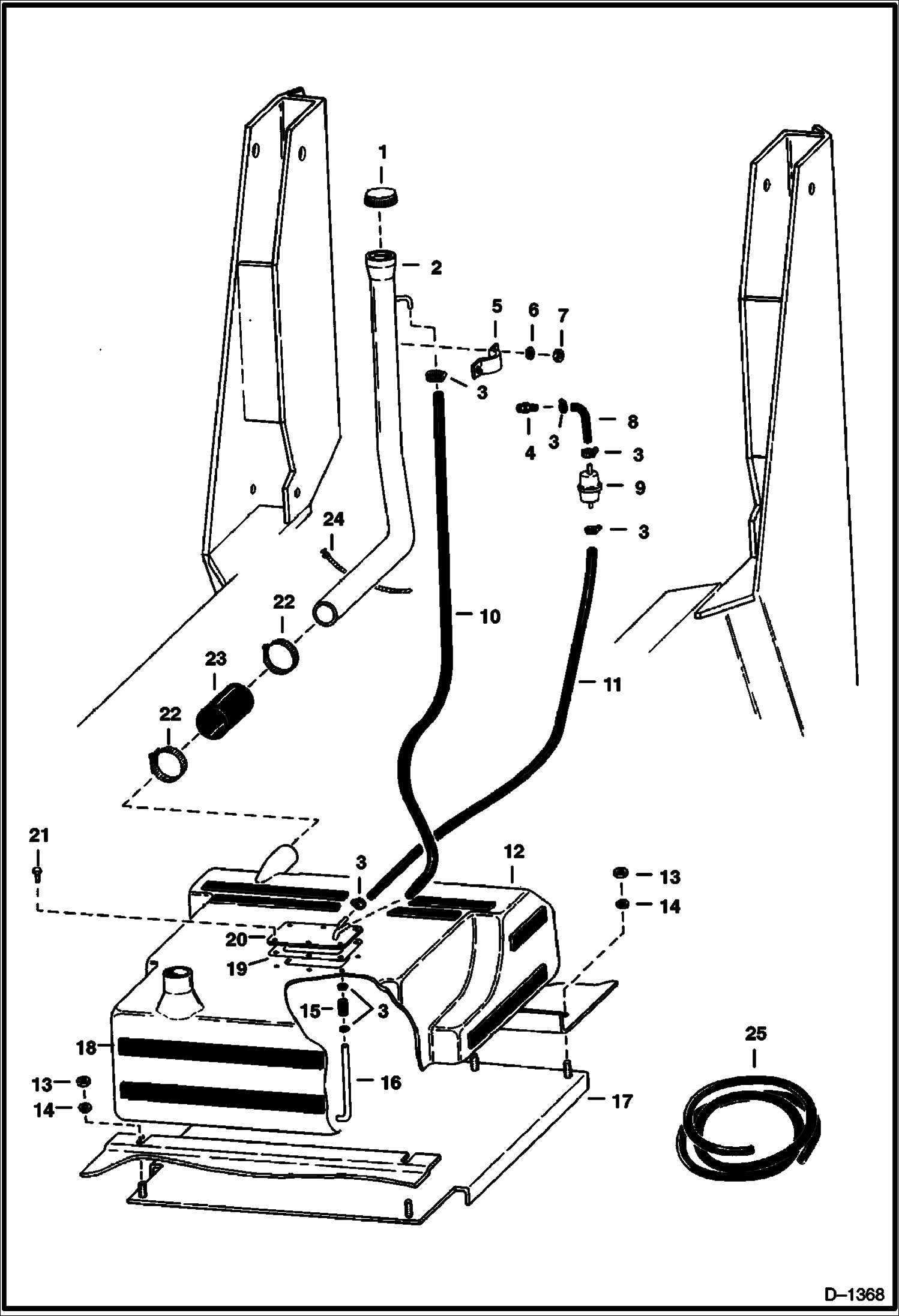

Запчасти Bobcat 600s FUEL SYSTEM (Lot C & Above) MAIN FRAME

1

6512841

CAP

2

FILLER NLA - Was 6541664 - A

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

6505813

CONNECTOR barbed

5

6514558

CLAMP

6

25E17

WASHER 5

7

61D6

NUT 5

8

6542222

HOSE

9

6511393

FILTER

10

6552637

HOSE

11

6552638

HOSE

12

6555986

TANK KIT - includes Ref. 18, Ref. 19, 6515213 rivet (2), 6555718 tank & 6556082 instructions

13

61D8

NUT 5

14

25E21

WASHER 5

15

6577821

HOSE Was 6543387 - A

16

TUBE NLA - Was 6591457 - A

17

6552607

PLATE

18

6554387

STRIP 14 ft. Roll

19

6552605

GASKET

20

6554201

PLATE

21

14G1012

CAPSCREW

22

42H32

HS CLAMP5 hose

23

HOSE NLA - 4.5'' (114,3 mm) long - Order Ref. 25 - Was 6540485 - D

24

6503117

TIE

25

1309037

HOSE-BULK Bulk - Sold Per Foot
