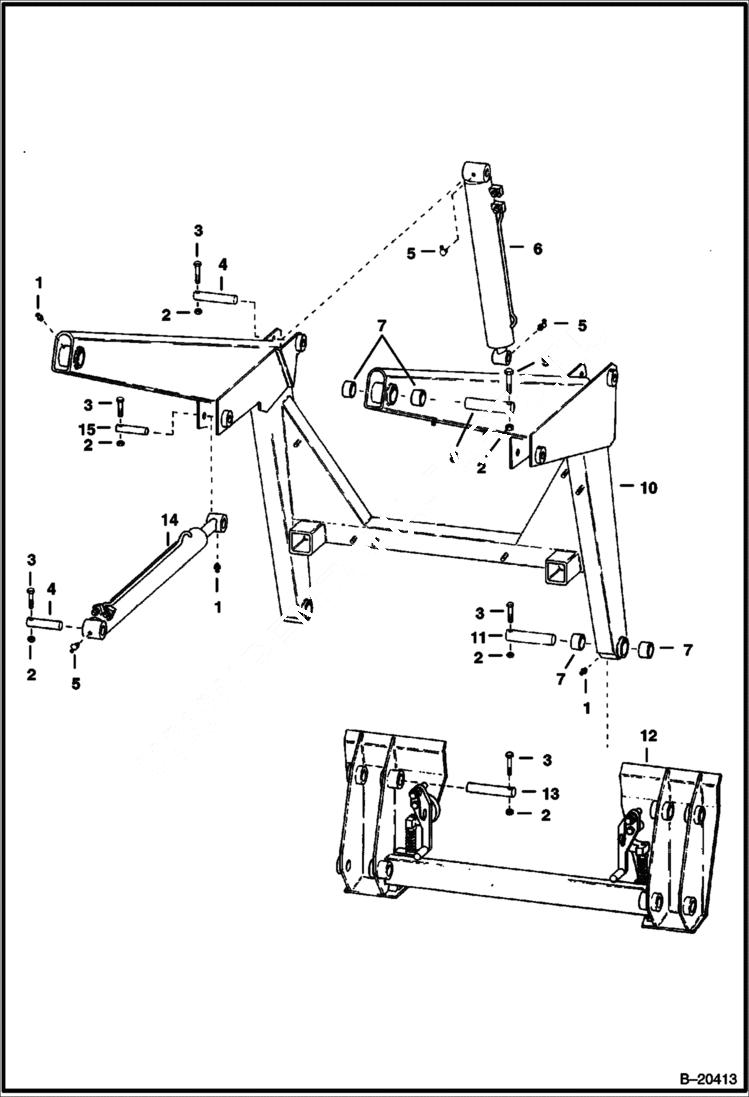

Запчасти Bobcat 600s LIFT ARM & BOB-TACH MAIN FRAME

1

36H25

FITTING

2

59D6

NUT

3

17C640

BOLT 5

4

6547595

PIN

5

38H15

FITTING

6

CYLINDER See Illustration TILT CYLINDER/ B20418 - NLA - tilt - LH - Was 6540230 - A

7

6540159

BUSHING

8

6543725

PIN

9

17C648

BOLT 5

10

KIT NLA - lift arm - prime painted only - Was 6565693 - A

11

6543715

PIN

12

BOB-TACH See Illustration BOB-TACH/ D1316 See Illustration BOB-TACH/ B20414

13

6547594

PIN

14

6540229

CYLINDER See Illustration LIFT CYLINDER/ B20417 LIFT

15

6547593

PIN, PIVOT
