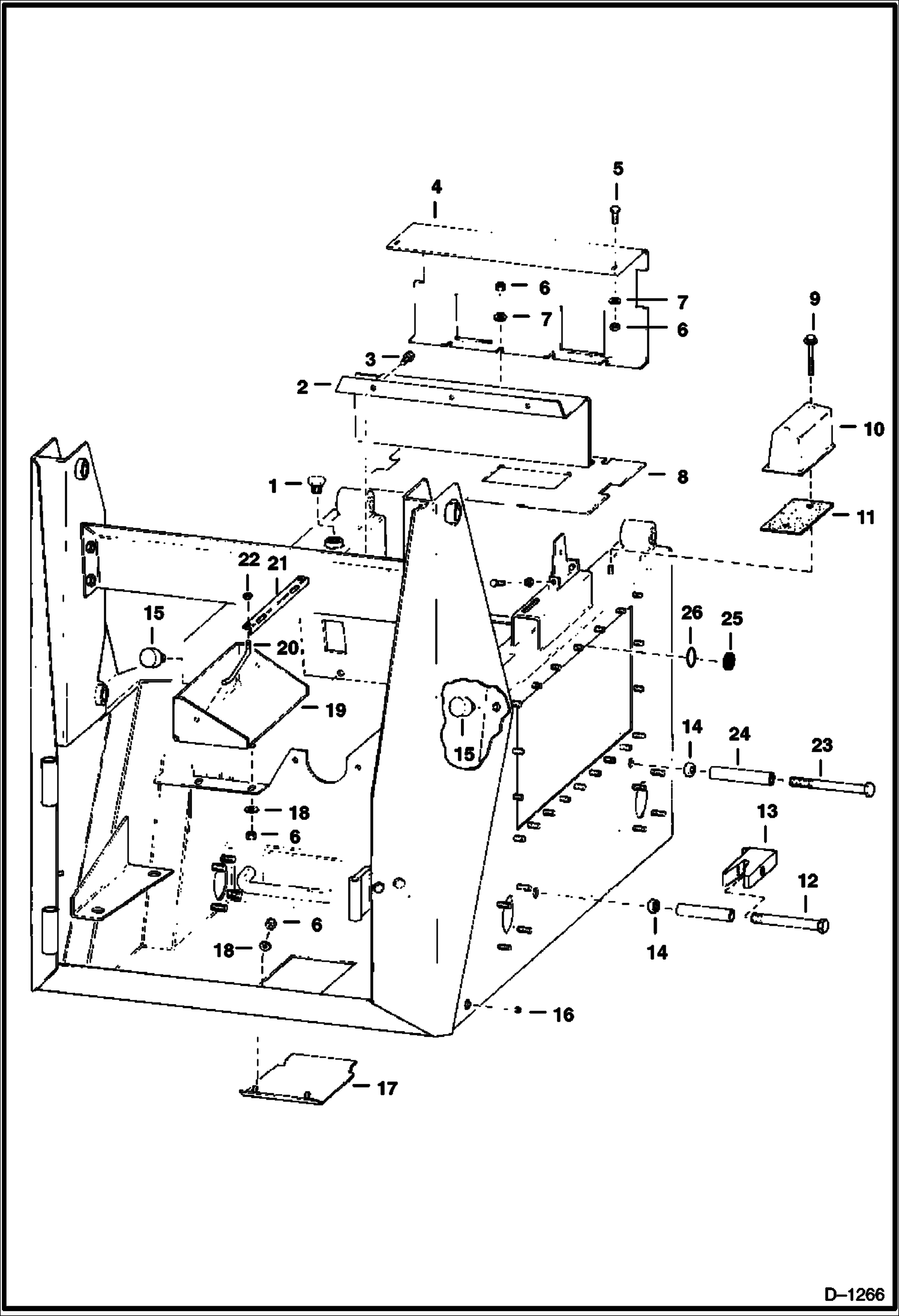

Запчасти Bobcat 600s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

PLUG NLA - Was 40K000016B - A

2

6547426

STEP Was 6547425 - A

3

17C612

BOLT 5

4

6540105

GUARD foot

5

17C616

BOLT 5

6

61D6

NUT 5

7

25E17

WASHER 5

8

6555775

PLATE floor

9

BOLT NLA - Order 17C000552B & 25E000015B - Was 6505059 - A

10

6553654

COVER instrument

11

GASKET NLA

12

17C1260

BOLT

13

6544386

SPACER

14

61D12

NUT

15

BREATHER NLA - Was 6519644 - A

16

40K12

PLUG

17

6542218

COVER belly pan

18

25E18

WASHER

19

6541205

BOX battery

20

6548876

ROD battery - Front

20

6548877

ROD battery - Rear

21

6548878

HOLDDOWN battery

22

91D5

NUT 5 Was 81D000005B - B

23

17C1296

BOLT

24

6542805

SPACER

25

6552856

PLUG

26

25K40112

O RING 10
