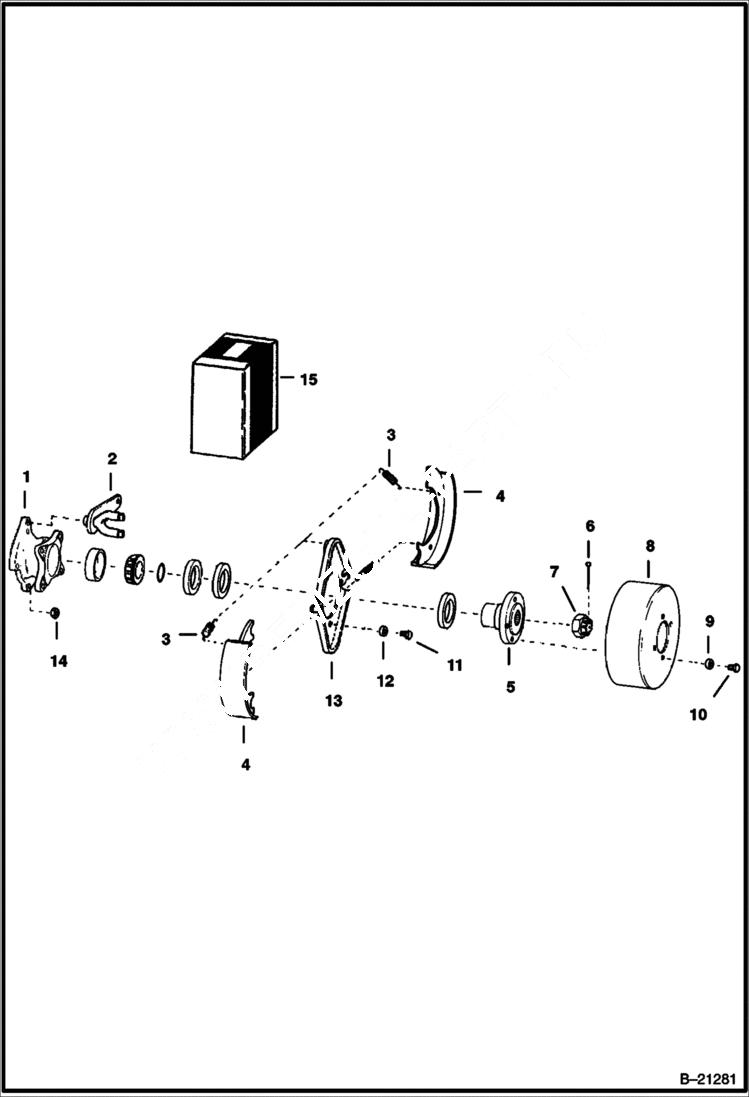

Запчасти Bobcat 600s BRAKES ACCESSORIES & OPTIONS

1

HUB NLA - Was 6542728 - A

2

CAM NLA - R.H. - Was 6546212 - A

2

6546211

CAM L.H.

3

6518094

SPRING

4

KIT NLA - brake shoe - Was 6516195 - A

5

HUB NLA - Was 6503238 - A

6

1F628

PIN

7

4D18

NUT castle

8

6518098

DRUM brake

9

6E7

WASHER

10

17C712

BOLT

11

17C820

BOLT

12

6E8

WASHER

13

6516196

PLATE

14

81D8

NUT

15

6515745

KIT brake shoe - Ref. 3 & 4
