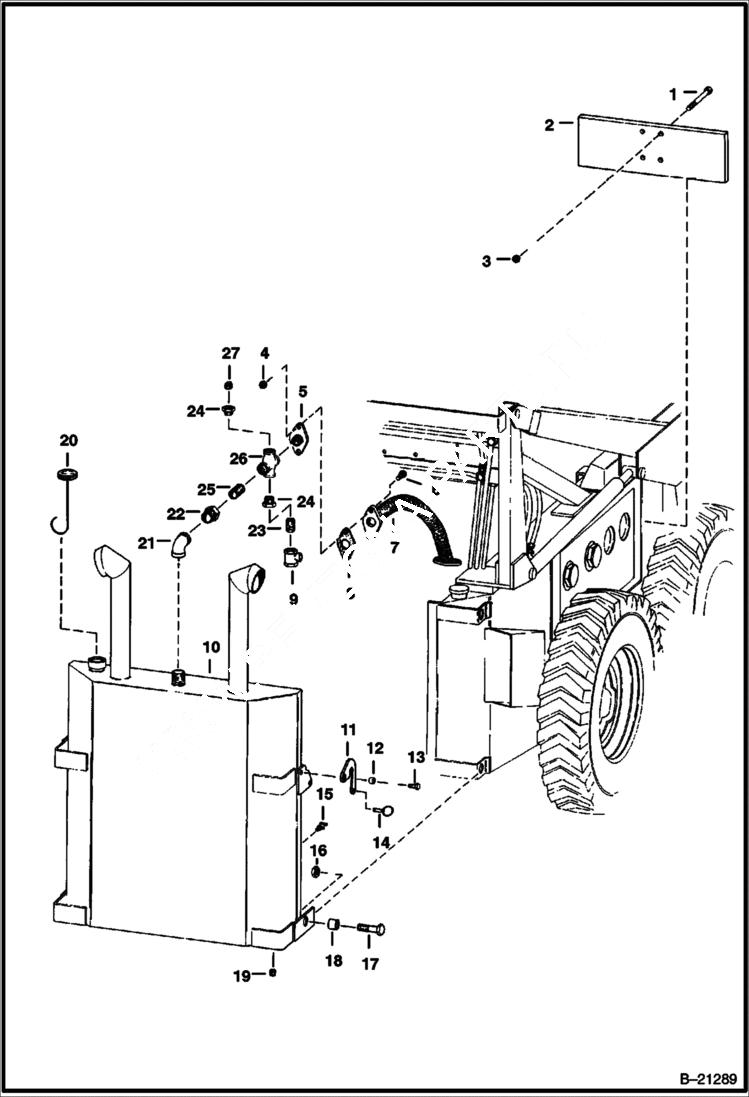

Запчасти Bobcat 600s SCRUBBER MUFFLER Deutz F2L411W POWER UNIT

1

17C864

BOLT

2

6503566

COUNTERWEIGHT 18-3/4 lbs.

3

61D8

NUT 5

4

61D6

NUT 5

5

6552731

FLANGE

6

17C620

BOLT

7

EXHAUST TUBE NLA - Was 6502028 - A

8

6541299

GASKET Was 6515953 - A

9

CHECK VALVE NLA - Was 6515197 - A

10

6501507

SCRUBBER

11

6503457

HOOK

12

6503451

SPACER

13

17C816

BOLT

14

6515642

PIN klik

15

6515482

DRAIN COCK

16

61D12

NUT

17

17C1248

BOLT

18

6503498

BUSHING

19

40K12

PLUG

20

6515629

FUEL CAP W/O Chain - Was 6505065 - A

21

ELBOW NLA - Was 24F000008B - A

22

BUSHING NLA - Was 19F000018B - A

23

5K409

NIPPLE

24

19F14

BUSHING ( 1 1/4'' X 1/2'' )

25

NIPPLE NLA - Was 5K001020B - A

26

FITTING NLA - Was 18F000007B - A

27

40K8

PLUG
