Запчасти Bobcat 600s CRANKSHAFT, PISTON & FLYWHEEL Deutz F2L411W POWER UNIT

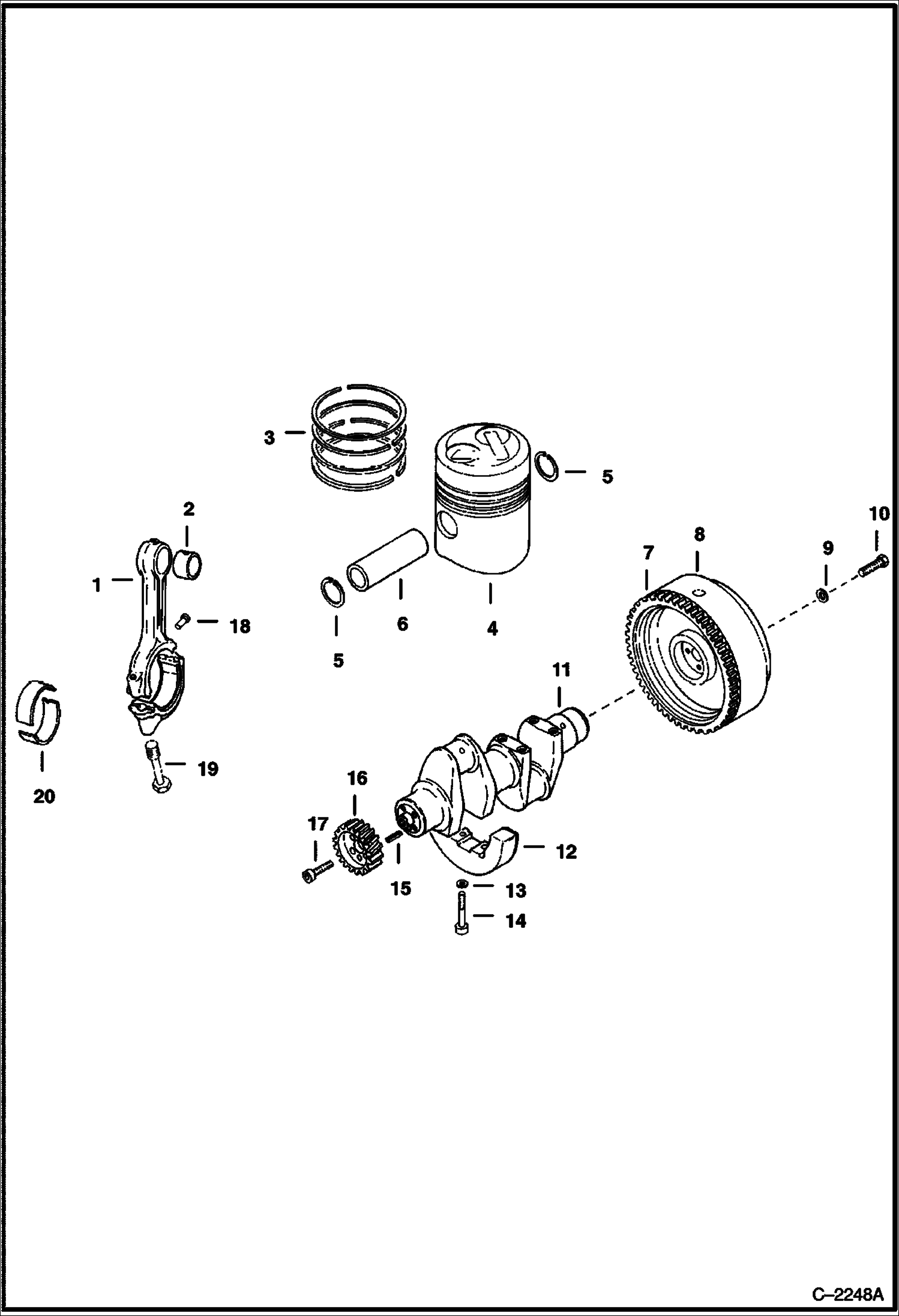

Схема запчастей Bobcat 600s - CRANKSHAFT, PISTON & FLYWHEEL Deutz F2L411W POWER UNIT

Артикул

Название

Примечание

Количество

1

ROD NLA - connect - W/Ref. 2 - A

2

6516096

BUSHING

3

6511342

RING SET Std. 92 mm

3

RING SET NLA - .020'' (0,51mm) - one set - Was 6511343 - A

3

RING SET NLA - .040'' (1,02mm) - one set - Was 6511344 - A

4

PISTON Std. 92mm - W/Ref. 3, 5, 6

4

6512554

PISTON 92.5mm - W/Ref. 3, 5, 6

4

6512555

PISTON 93mm - W/Ref. 3, 5, 6

5

7JM30

CIRCLIP

6

6516100

PISTON PIN

7

6516106

RING GEAR

8

FLYWHEEL NLA -W/Ref. 7 - Was 6512547 - A

9

4280285

WASHER

10

5CM1240

BOLT

11

CRANKSHAFT NLA - Was 6511337 - A

12

COUNTERWEIGHT NLA - Was 6511338 - A

13

6515969

WASHER

14

4GM1040

BOLT socket head

15

1JM6016

PIN

16

6516089

GEAR

17

4GM1035

BOLT socket head

18

6516091

PIN lock

19

3CM1050

SCREW

20

6513839

BEARING rod - Std. 52mm

20

6513842

BEARING rod - 51.5mm - one bearing

20

6513870

BEARING rod - 51mm - one bearing

20

6513871

BEARING rod - 50.5mm

Выбрано товаров: 27
