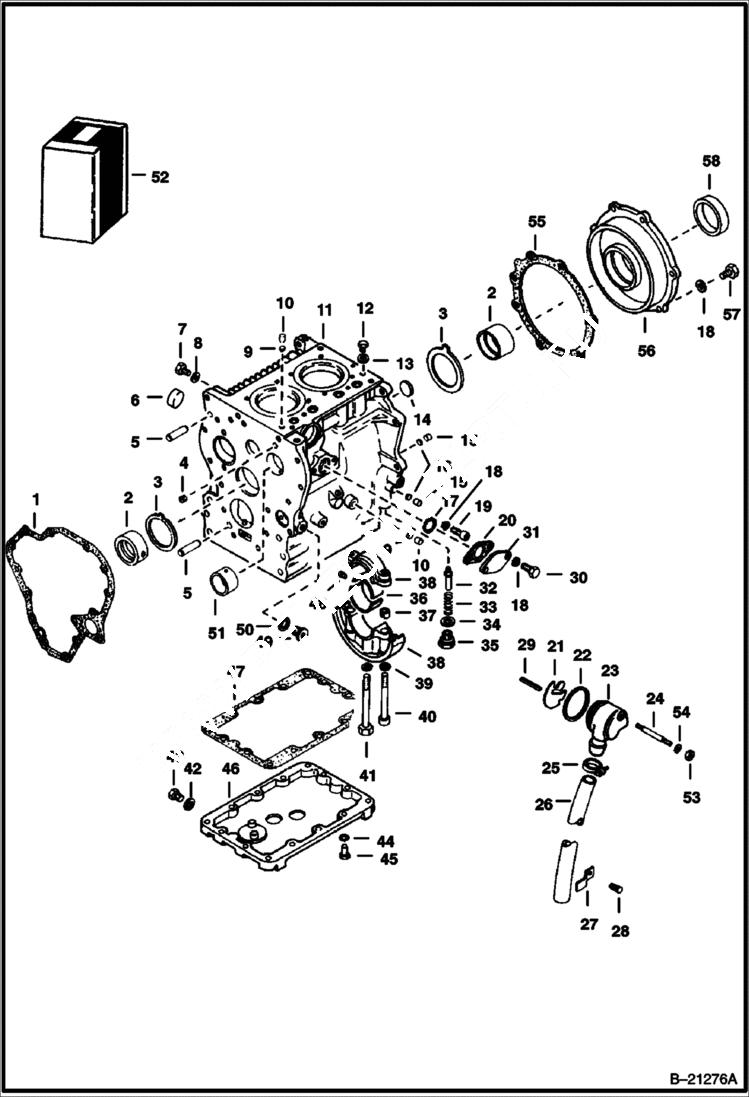

Запчасти Bobcat 600s CYLINDER BLOCK Deutz F2L411W POWER UNIT

1

6515954

GASKET

2

6515955

BEARING main - Std.

2

6515956

BEARING main - .020'' (0,51mm)

2

6515957

BEARING main - .040'' (1,02mm)

2

6515958

BEARING main - .060'' (1,52mm)

3

6513748

WASHER thrust - Std. 0.1181'' (3mm)

3

6513755

WASHER thrust - 0.1279'' (3,25 mm) - Was 6515963 - A

3

6513756

WASHER thrust - 0.1378'' (3,50 mm) - Was 6515964 - A

3

6515965

WASHER thrust - 0.1476'' (3,75mm)

3

6515966

WASHER thrust - 0.1575'' (4mm)

4

6511931

PLUG

5

6515909

DOWEL PIN

6

6511829

PLUG

7

BOLT NLA - Was 4CM01216B - A

8

2FM12155

WASHER

9

6511930

WASHER

10

6511929

PLUG

11

6511333

CRANKCASE

12

1KM10

PLUG

13

6513766

WASHER

14

6515967

PLUG

15

6511932

PLUG

16

6511933

WASHER

17

6516118

O-RING

18

6EM60

WASHER, SPRING

19

4GM615

SCREW

20

GASKET NSS

21

6512623

PLATE valve

22

6512622

O-RING

23

6516711

BREATHER

24

6512581

STUD

25

6516714

HOSE CLAMP

26

6516713

HOSE Was 6555068 - A

27

6516021

PLATE retainer

28

6515930

PIN retainer

29

ROLL PIN NLA - Was 1JM05036B - A

30

4CM615

BOLT

31

6511830

COVER

32

6515959

VALVE oil pressure

33

6515960

SPRING

34

2FM16220

WASHER

35

6515961

PLUG

36

6515972

BEARING main - Std.

36

6515973

BEARING main - .020'' (0,51mm)

36

6515974

BEARING main - .040'' (1,02mm)

36

6515975

BEARING main - .060'' (1,52mm)

37

6515971

DOWEL

38

SUPPORT NLA - bearing - Was 6515968 - A

39

6515969

WASHER

40

4GM1080

BOLT

41

1CM1290

SCREW

42

6513766

WASHER

43

6515991

PLUG

44

6515937

WASHER

45

1CM620

BOLT Was 4CM620 - A

46

6511833

OIL PAN

47

GASKET NLA - Was 6511834 - A

48

DOWEL NLA - Was 6515970 - A

49

6516022

PLUG

50

6513763

WASHER Was 2FM-14180 - A

51

6516015

BUSHING

52

6512684

GASKET KIT overhaul

53

1DM8

NUT

54

1EM80

WASHER

55

6513846

GASKET Was 6516001 - A

56

6515999

HOUSING

57

4CM618

BOLT

58

6516000

SEAL crankshaft
