HYDRAULIC PUMP MOUNTING Deutz F2L411W

Запчасти Bobcat 600s HYDRAULIC PUMP MOUNTING Deutz F2L411W POWER UNIT

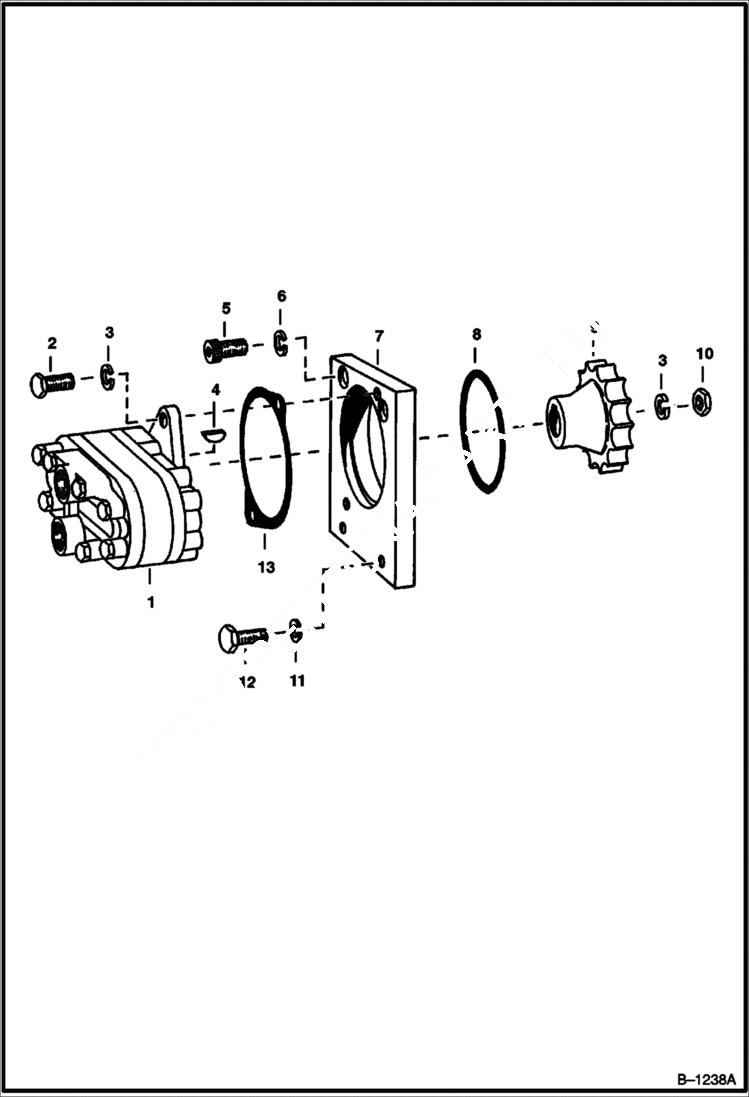

Схема запчастей Bobcat 600s - HYDRAULIC PUMP MOUNTING Deutz F2L411W POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6510924

PUMP hydraulic

2

17C616

BOLT 5

3

4E6

WASHER

4

16JM365

KEY

5

1GM820

BOLT

6

6EM80

WASHER, SPRING

7

PLATE NLA - Was 6503378 - A

8

6515913

O-RING

9

4149972

GEAR

10

62D6

NUT 5

11

6EM60

WASHER, SPRING

12

1CM685

SCREW

13

GASKET NLA - Was 6503220 - A
