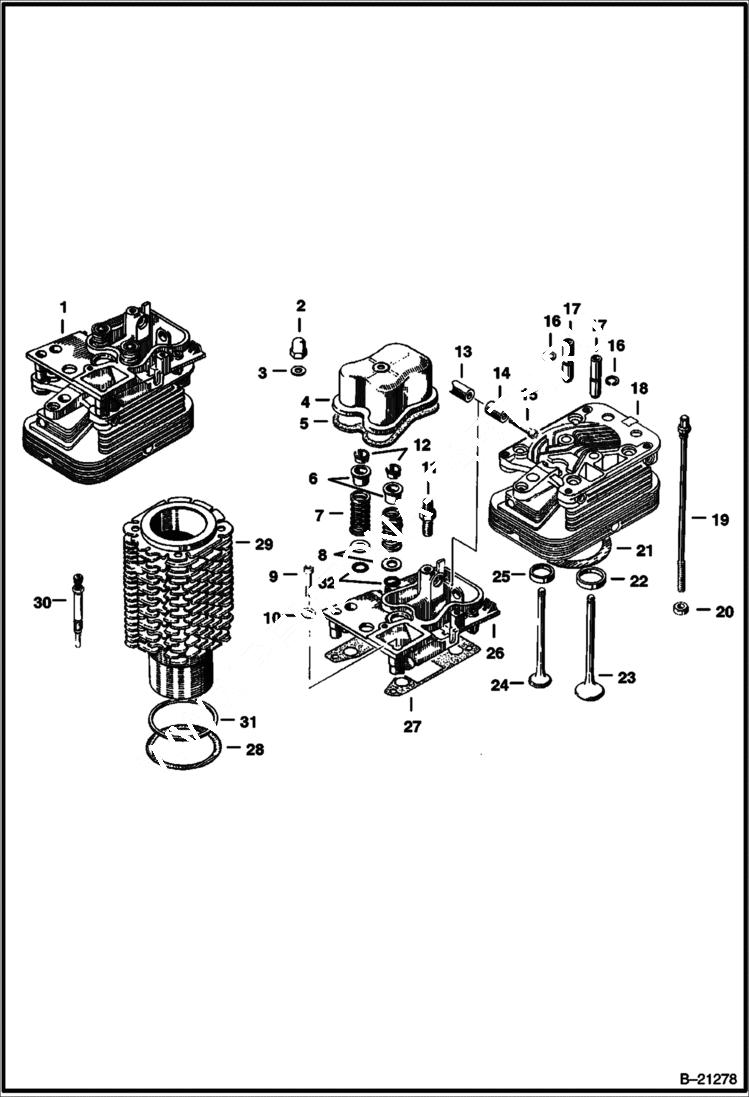

Запчасти Bobcat 600s CYLINDER BLOCK & HEADS Deutz F2L411W POWER UNIT

1

6512552

HEAD complete

2

36DM8

CAP NUT acorn

3

1FM80115

WASHER

4

6516053

COVER valve

5

6511128

GASKET

6

6516050

CAP

7

6516049

SPRING

8

6516048

WASHER

9

1GM840

SCREW

10

6516147

WASHER

11

6516055

STUD

12

6516051

RETAINER valve

13

6516057

NUT rocker

14

6516056

BUSHING

15

4GM850

SCREW socket head

16

6516052

O-RING circlip

17

6513824

GUIDE valve

18

HEAD NLA - Order Ref. 1

19

6516044

SCREW head

20

6516045

WASHER

21

6511351

GASKET head

22

SEAT NLA - intake - Was 6511349 - A

23

VALVE NLA - intake - Was 6511347 - A

24

VALVE NLA - exhaust - Was 6511348 - A

25

SEAT NLA - exhaust - Was 6511350 - A

26

6512553

BOX rocker

27

6519259

GASKET

28

6511937

SHIM

29

CYLINDER NLA -Was 6511835 - A

30

6512584

PRE-HEATER

31

WASHER NLA - Was 6511836 - A

32

6632540

O-RING
