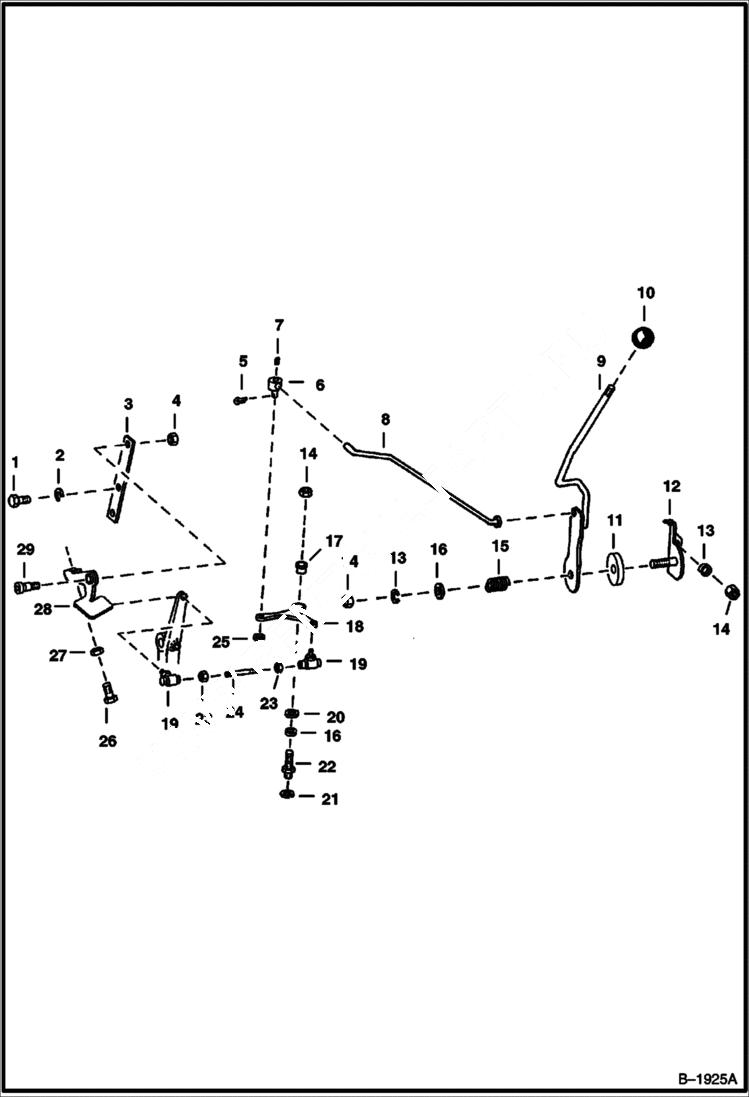

Запчасти Bobcat 600s THROTTLE Deutz F2L411W POWER UNIT

1

1CM820

BOLT Was 4CM820 - A

2

6EM80

WASHER, SPRING

3

6547547

BRACKET

4

81D6

NUT

5

1F416

PIN

6

6551463

BLOCK

7

15G505

SCREW

8

- A

9

6501455

HANDLE

10

6515888

KNOB

11

6503388

BLOCK

12

6501484

BRACKET

13

4E6

WASHER

14

61D6

NUT 5

15

6704453

SPRING Was 6503387 - A

16

25E17

WASHER 5

17

6515202

BUSHING

18

ARM NLA - pivot, throttle - Was 6503377 - A

19

6515194

BALL JOINT

20

25E21

WASHER 5

21

6EM100

WASHER

22

SCREW NLA - Was 6504736 - A

23

14D10

NUT

24

6551395

ROD

25

25E15

WASHER

26

17C416

BOLT

27

61D4

NUT 5

28

LEVER NLA - Was 6557790 - A

29

1312710

SCREW shoulder
