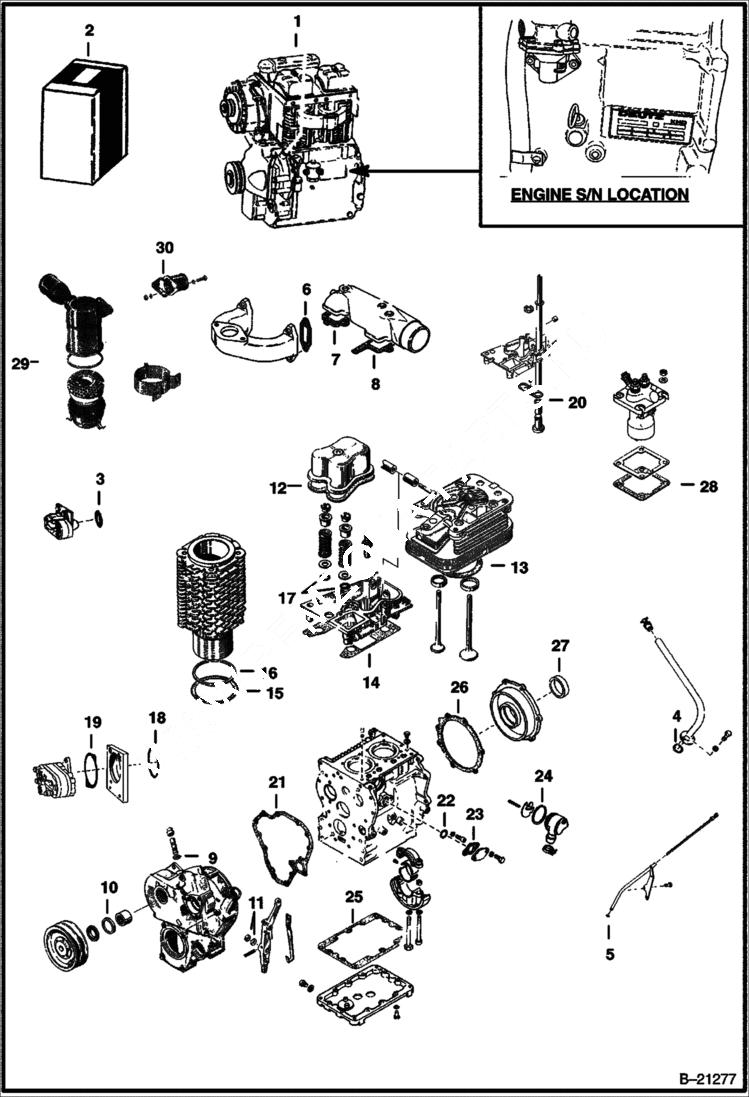

Запчасти Bobcat 600s DEUTZ DIESEL ENGINE F2L411W POWER UNIT

1

ENGINE NLA - Deutz

2

6512684

GASKET KIT overhaul - W/Ref. 3 - 30

3

6515913

O-RING See Illustration ENGINE & ATTACHING PARTS/ D1403 REF. 40

4

O-RING See Illustration ENGINE & ATTACHING PARTS/ D1395 NLA - Ref. 9 - WAS 6505542 - A

5

6515616

O-RING See Illustration ENGINE & ATTACHING PARTS/ D1395 Ref. 15

6

4110763

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B2694 Ref. 6

7

6516718

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B2694 Ref. 8

8

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B2694 - NLA - Ref. 14 - Was 6667865 - A

9

6515986

O-RING See Illustration FRONT COVER/ B21275A Ref. 7

10

6511607

SEAL See Illustration FRONT COVER/ B21275A REF. 35

11

6516185

O-RING See Illustration THROTTLE ARM & GOVERNOR/ PI1659A Ref. 4

12

6511128

GASKET See Illustration CYLINDER BLOCK & HEADS/ B21278 Ref. 5

13

6511351

GASKET See Illustration CYLINDER BLOCK & HEADS/ B21278 Ref. 21

14

6519259

GASKET See Illustration CYLINDER BLOCK & HEADS/ B21278 Ref. 27

15

6511937

SHIM See Illustration CYLINDER BLOCK & HEADS/ B21278 Ref. 28

16

WASHER See Illustration CYLINDER BLOCK & HEADS/ B21278 NLA - Ref. 31 - Was 6511836 - A

17

6632540

O-RING See Illustration CYLINDER BLOCK & HEADS/ B21278 REF. 32

18

6515913

O-RING See Illustration HYDRAULIC PUMP MOUNTING/ B1238A Ref. 8

19

GASKET See Illustration HYDRAULIC PUMP MOUNTING/ B1238A Ref. 13 NLA - Ref. 13 - Was 6503220 - A

20

6519268

O-RING See Illustration CAMSHAFT & VALVE LIFTER/ PI1760A Ref. 9

21

6515954

GASKET See Illustration CYLINDER BLOCK/ B21276A Ref. 1

22

6516118

O-RING See Illustration CYLINDER BLOCK/ B21276A Ref. 17

23

GASKET See Illustration CYLINDER BLOCK/ B21276A NSS - Ref. 20

24

6512622

O-RING See Illustration CYLINDER BLOCK/ B21276A Ref. 22

25

GASKET See Illustration CYLINDER BLOCK/ B21276A NLA - Was 6511834 - A

26

6513846

GASKET See Illustration CYLINDER BLOCK/ B21276A REF. 55

27

6516000

SEAL See Illustration CYLINDER BLOCK/ B21276A REF. 58

28

6511355

GASKET See Illustration FUEL SYSTEM/ C2249 NLA - Ref. 19 - Was 6511355 - A

29

6516139

GASKET See Illustration AIR CLEANER/ B21280 Ref. 4

30

6516142

GASKET See Illustration AIR CLEANER/ B21280 Ref. 10
