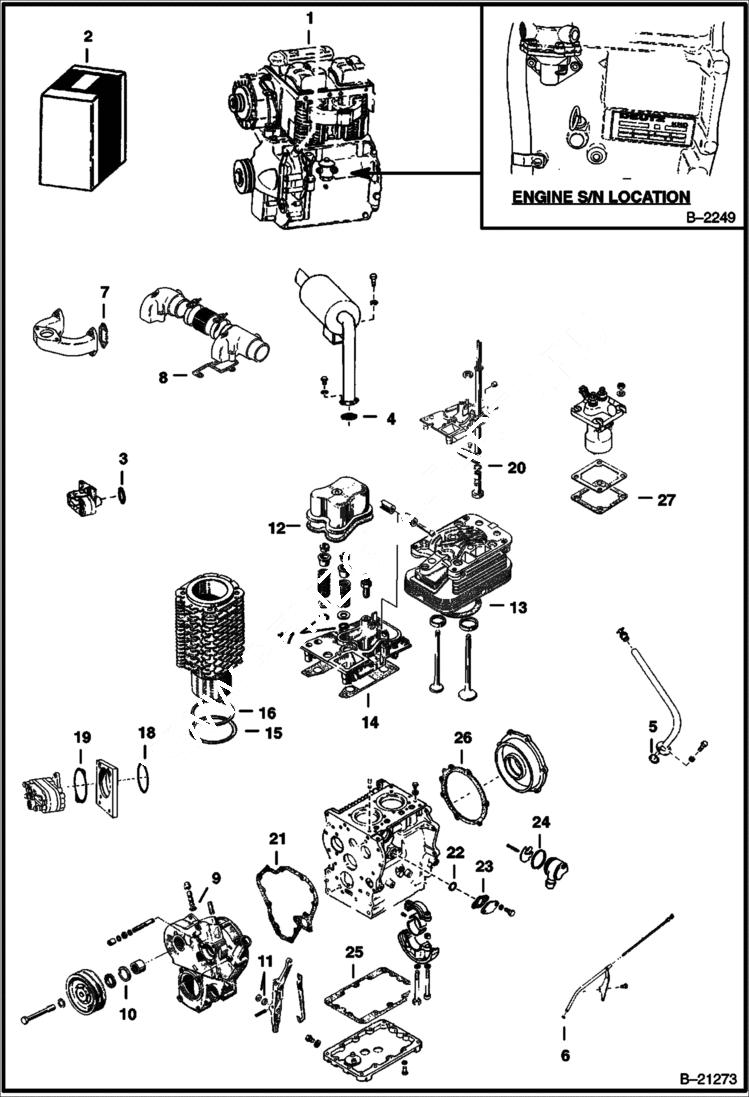

Запчасти Bobcat 600s DEUTZ DIESEL ENGINE F2L411D POWER UNIT

1

ENGINE NLA - Deutz

1

ENGINE NLA - remanufactured - includes manifold, fuel pump, blower, injection pump, injectors and oil filter - does not include starter, flywheel, alternator, air cleaner or fuel filter - Was 6548244R

2

6512685

GASKET KIT overhaul - W/Ref. 3-27 - Also Order (1) 6512621 intake manifold gasket

3

6515913

O-RING See Illustration ENGINE & ATTACHING PARTS/ C1723 REF. 52

4

6541299

GASKET See Illustration ENGINE & ATTACHING PARTS/ C1723 REF. 61

5

O-RING See Illustration ENGINE & ATTACHING PARTS/ D1240 NLA - Ref. 10 - WAS 6505542 - A

6

6515616

O-RING See Illustration ENGINE & ATTACHING PARTS/ D1240 Ref. 16

7

4110763

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B21274 Ref. 6

8

6512621

GASKET See Illustration INTAKE & EXHAUST MANIFOLDS/ B21274 Ref. 16

9

6515986

O-RING See Illustration FRONT COVER/ B21275 Ref. 7

10

6511607

SEAL See Illustration FRONT COVER/ B21275 REF. 35

11

6516185

O-RING See Illustration THROTTLE ARM & GOVERNOR/ PI1659 Ref. 4

12

6511128

GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 5

13

6511351

GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 21

14

6511837

GASKET See Illustration CYLINDER BLOCK & HEADS/ PI1756 Ref. 27

15

6511937

SHIM See Illustration CYLINDER BLOCK & HEADS/ PI1756 REF. 28

16

WASHER See Illustration CYLINDER BLOCK & HEADS/ PI1756 NLA - Ref. 29 - Was 6511836 - A

17

6632540

O-RING See Illustration CYLINDER BLOCK & HEADS/ PI1756 REF. 33

18

6515913

O-RING See Illustration HYDRAULIC PUMP MOUNTING/ B1238 Ref. 8

19

GASKET See Illustration HYDRAULIC PUMP MOUNTING/ B1238 Ref. 13 NLA - Ref. 13 - Was 6503220 - A

20

6519268

O-RING See Illustration CAMSHAFT & VALVE LIFTER/ PI1760 Ref. 9

21

6515954

GASKET See Illustration CYLINDER BLOCK/ B21276 Ref. 1

22

6516118

O-RING See Illustration CYLINDER BLOCK/ B21276 Ref. 17

23

GASKET See Illustration CYLINDER BLOCK/ B21276 NSS - Ref. 20

24

6512622

O-RING See Illustration CYLINDER BLOCK/ B21276 Ref. 23

25

GASKET See Illustration CYLINDER BLOCK/ B21276 NLA - Was 6511834 - A

26

6513846

GASKET See Illustration CYLINDER BLOCK/ B21276 REF. 55

27

GASKET See Illustration FUEL SYSTEM/ C2261 NLA - Ref. 21 - Was 6511355 - A
