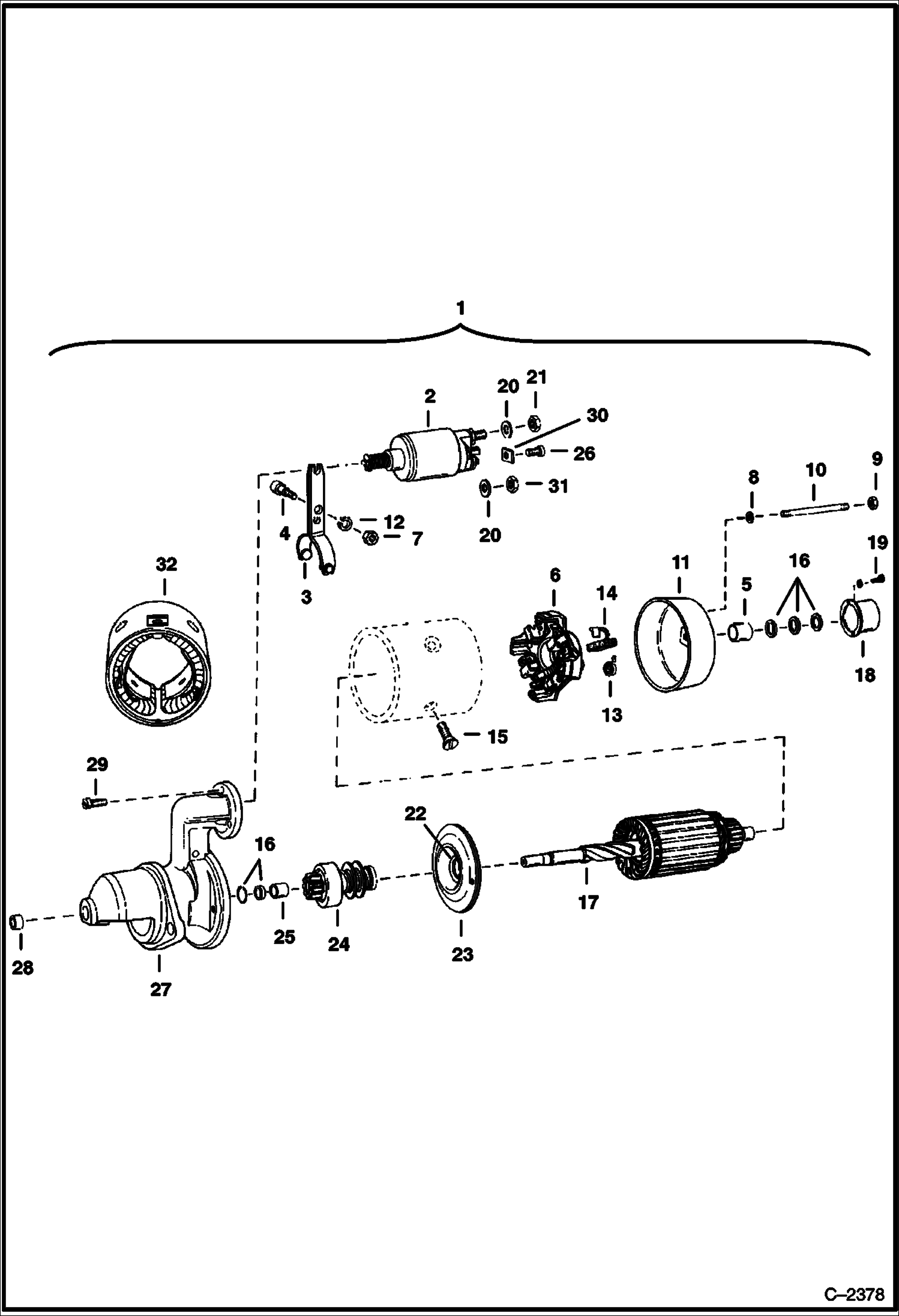

Запчасти Bobcat 600s STARTER Bosch 0-001-362-046 ELECTRICAL SYSTEM

1

6513391

STARTER

2

6513358

RELAY

3

6513355

LEVER engaging

4

3734083

SCREW

5

6513364

BUSHING

6

6513361

FRAME comutator end

7

6517902

NUT

8

6513366

WASHER

9

1DM6

NUT

10

6513357

BOLT

11

6513363

COVER end

12

6513356

WASHER

13

6513362

SPRING brush

14

6513368

BRUSHES See Gen. Ser. Bltn. G-006 - w/o wires

15

6517909

SCREW

16

6513369

WASHER SET washer armature

17

6513350

ARMATURE

18

6513367

COVER

19

6513365

SCREW

20

6EM100

WASHER Was 6517894 - A

21

6517900

NUT

22

6513352

BUSHING

23

6513351

BEARING W/Ref. 22

24

6513353

DRIVE W/Ref. 25

25

3727307

BUSHING

26

6517901

SCREW

27

6513354

FRAME W/Ref. 28

28

3726916

BUSHING

29

6664479

SCREW Was 6513359 array(A]

30

3726936

BRACKET

31

1DM10

NUT

32

6513360

COILS field
