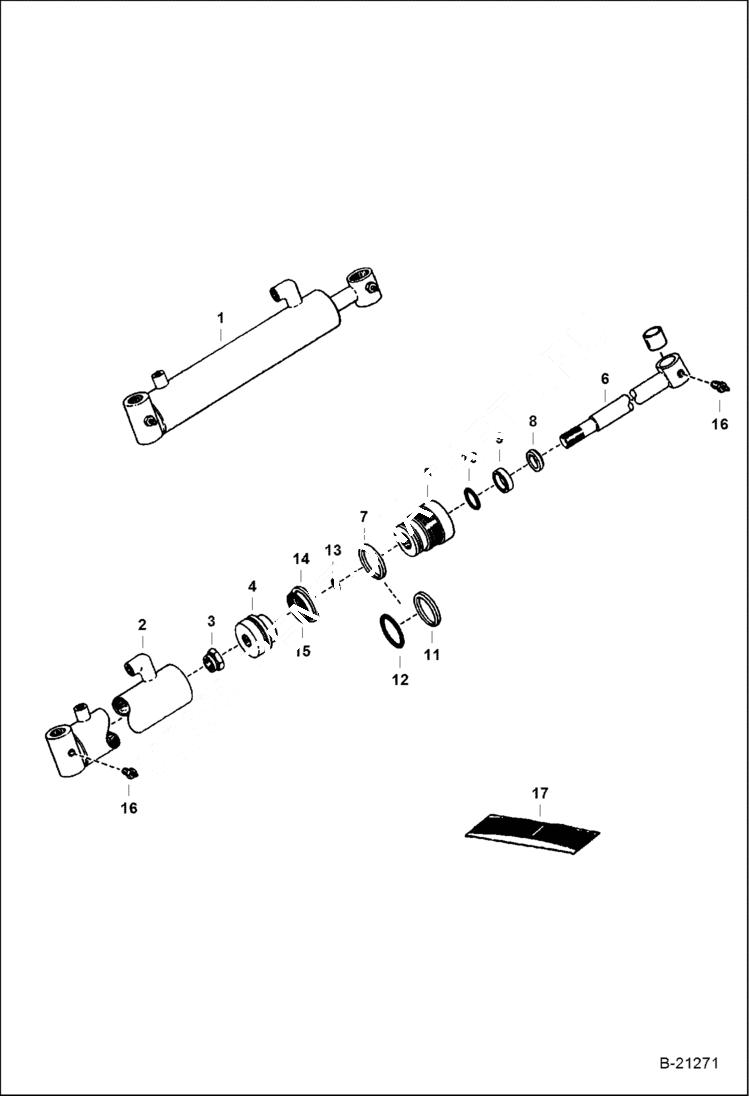

Запчасти Bobcat 600s TILT CYLINDER HYDRAULIC SYSTEM

1

6501108

CYLINDER

2

6592029

CASE

3

92D12

NUT See BTI126 - Was 86D000012B - B

4

6558196

PISTON See BTI126

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6587333

ROD W/Ref. 17 - Was 6529330 - A

7

7008781

SEAL, QUAD

8

1657083

WIPER ROD wiper

9

6667323

SEAL rod - Was 6704243 - A

10

O-RING NSS

11

73K224

RING back-up - Was 666939B - B

12

54K40124

O-RING Was 25K040124B - A

13

O-RING NSS

14

6516231

SEAL piston

15

54K30118

O-RING Was 25K030118B - A

16

10H25

FITTING, GREASE 5

17

6547652

BUSHING

18

7137771

SEAL KIT Ref. 3, 7, 8-10, & 13-15 - Was 6803472 - A
