Запчасти Bobcat 600s TILT CYLINDER CIRCUITRY HYDRAULIC SYSTEM

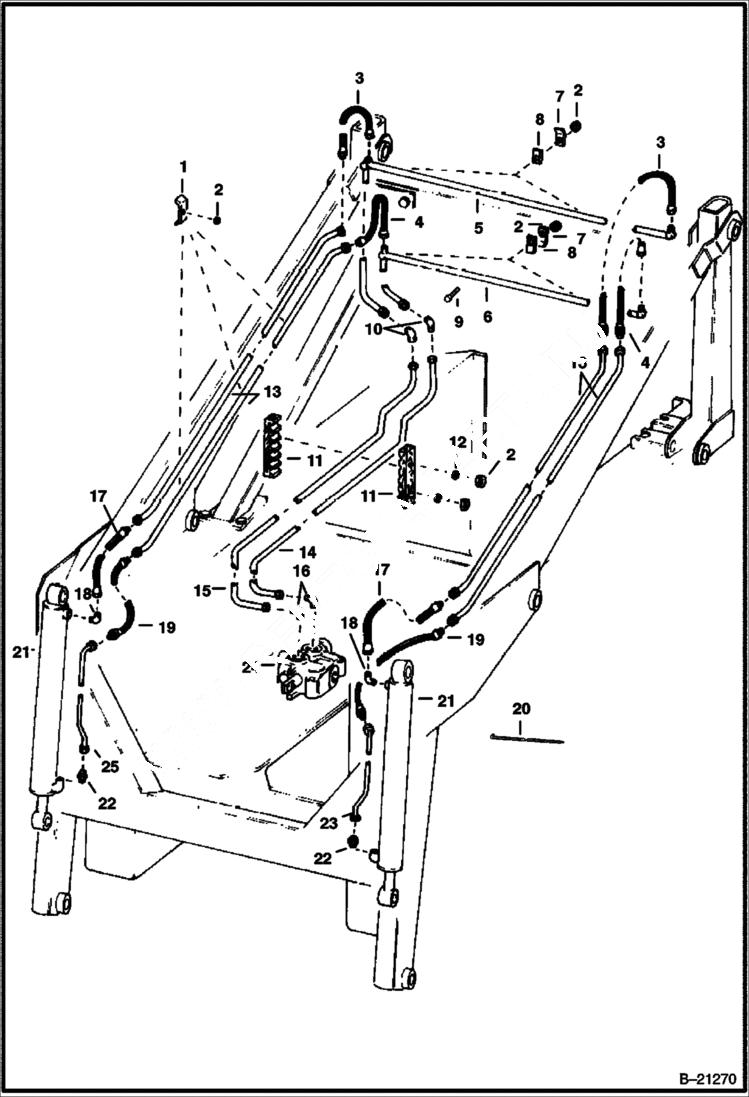

Схема запчастей Bobcat 600s - TILT CYLINDER CIRCUITRY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6502203

CLAMP tube

2

81D6

NUT

3

6501052

HOSE

4

6563616

HOSE Was 6501053 - A

5

6501079

TUBE

6

TUBE NLA - Was 6501081 - A

7

CLAMP NLA - hydraulic tube mounting - Was 6505660 - A

8

SPACER NLA - Was 6552266 - A

9

17C620

BOLT

10

77F6

ELBOW

11

BLOCK NLA - Was 6503071 - A

12

25E17

WASHER 5

13

6501040

TUBE

14

TUBE NLA - Was 6501134 - A

15

6501133

TUBE

16

662487

ELBOW

17

6501051

HOSE

18

83F5

ELBOW

19

6501049

HOSE

20

42H40

HOSECLAM5

21

6501108

CYLINDER See Illustration TILT CYLINDER/ B21271 TILT

22

89F5

CONNECTR

23

6501042

TUBE

24

6504942

VALVE See Illustration TILT CYLINDER VALVE/ C1049

25

6501041

TUBE

Выбрано товаров: 25
