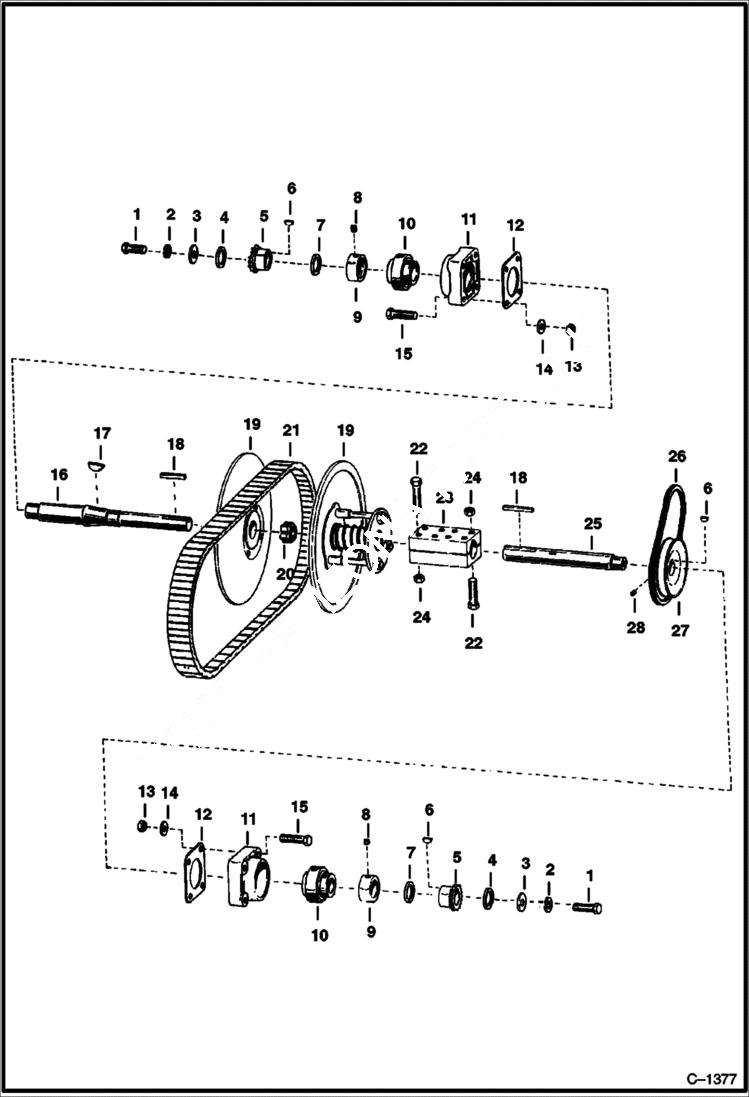

Запчасти Bobcat 600s VARIABLE SPEED JACKSHAFT Tapered Jackshaft DRIVE TRAIN

1

17C816

BOLT

2

4E8

WASHER

3

6558268

WASHER

4

WASHER NLA - Was 6505362 - A

5

SPROCKET NLA - Was 6504461 - A

6

5J806

KEY

7

WASHER NLA - Was 6505361 - A

8

15G606

SCREW

9

6515106

COLLAR

10

6518862

BEARING cone - W/O Collar - Was 6509275 - A

11

6515105

HOUSING bearing

12

6502341

GASKET

13

81D8

NUT

14

6515466

WASHER

15

17C824

BOLT 5

16

6503352

JACKSHAFT half - L.H.

17

5J1010

KEY

18

7J3200

KEY

19

6501434

SHEAVE ASSY.

20

6503357

NUT spanner

21

6504510

BELT

22

18C544

BOLT 5

23

6502810

SPLICER splicer

24

82D5

NUT 5

25

6551114

JACKSHAFT half - R.H.

26

6505371

BELT

27

6551201

PULLEY

28

15G406

SCREW
