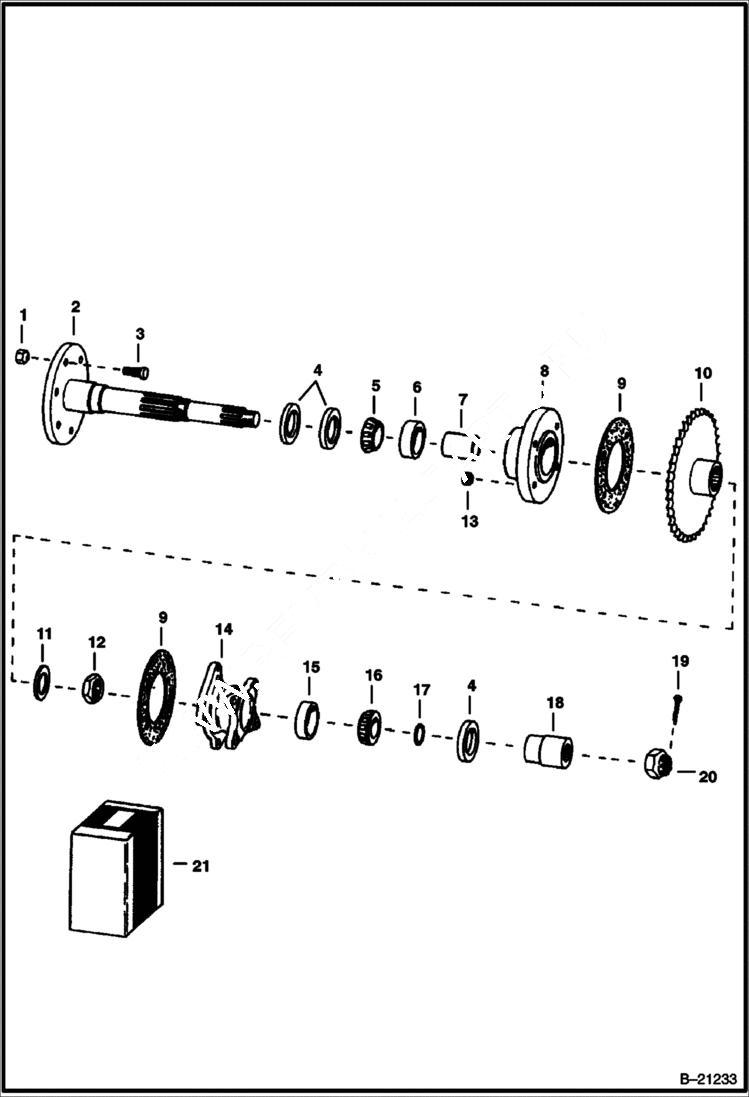

Запчасти Bobcat 600s FRONT BRAKE AXLE DRIVE TRAIN

1

6564669

NUT, 10 wheel - Was 6519169 - A

2

6542555

AXLE W/Ref. 1 & 3

3

6709170

BOLT, WHEEL Was 6559502 - A

4

6515000

SEAL

5

6648774

BEARING Was 743778B - A

6

6648776

RACE Was 743777B - A

7

SPACER NLA - Was 6502288 - A

8

6502533

HUB

9

6502209

GASKET

10

6504794

SPROCKET

11

6503242

WASHER

12

NUT NLA - Was 6503241 - A

13

81D8

NUT

14

HUB NLA - Was 6542728 - A

15

6519413

RACE

16

6519412

BEARING

17

25K40112

O RING 10

18

6542665

STOP

19

1F628

PIN

20

4D18

NUT castle

21

6563442

KIT See Illustration AXLE SEAL KIT/ B4041 AXLE SEAL
