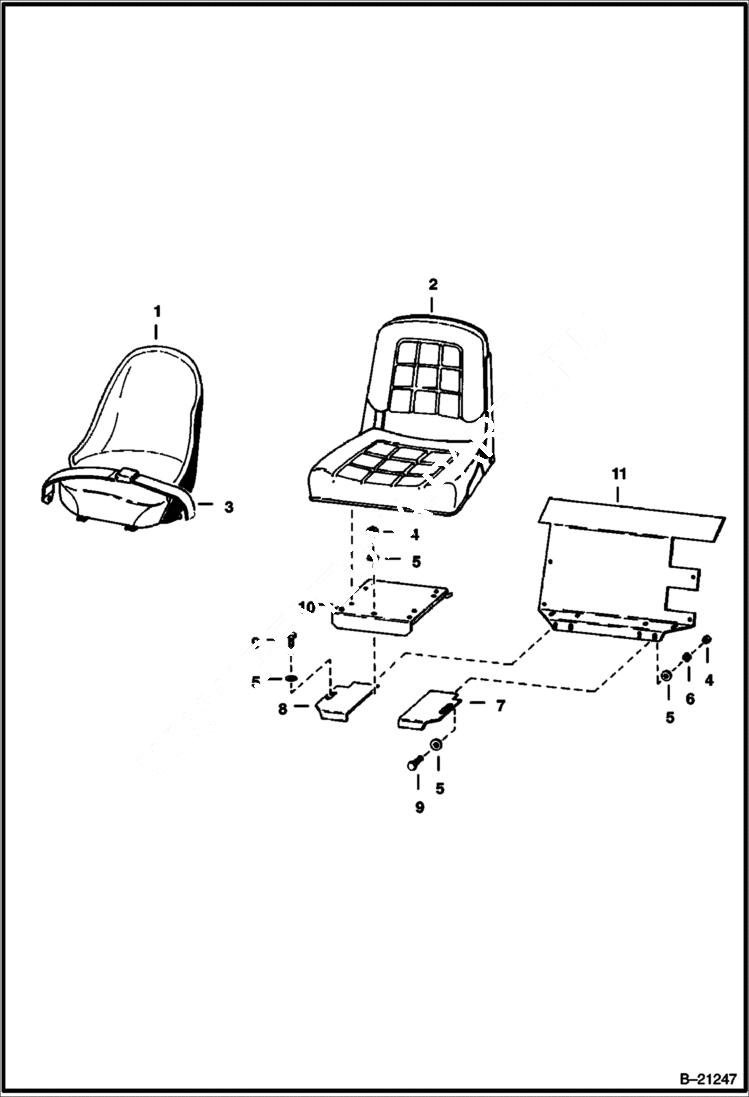

Запчасти Bobcat 600s SEAT & SEAT MOUNTING MAIN FRAME

1

SEAT NLA - Order 6665401 - if Ref. 10 doesn't have 2 sets of holes also Order Ref. 10 - Was 6515423 - A

1

CUSHION NLA - back - Was 891055 - A

1

891056

CUSHION seat

2

SEAT See Illustration SEAT/ B7185

3

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

4

61D6

NUT 5

5

25E17

WASHER 5

6

4E6

WASHER

7

6548383

COVER battery - L.H.

8

6548384

COVER battery - R.H.

9

17C612

BOLT 5

10

6559095

BRACKET

11

6547923

COVER
