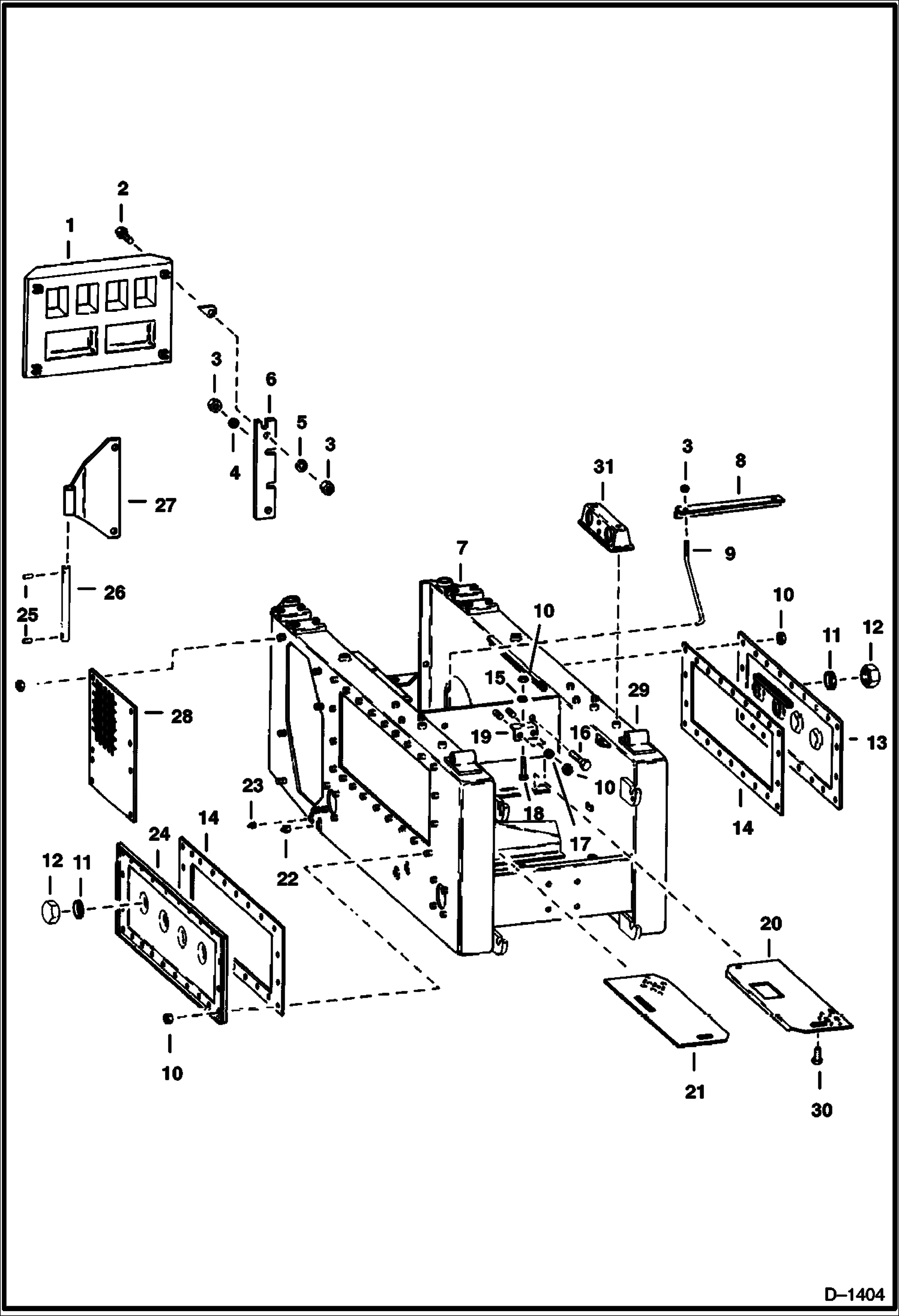

Запчасти Bobcat 600s MAIN FRAME Right Side MAIN FRAME

1

GRILL NLA - 100 lbs. - Was 6503120 - A

2

17C840

BOLT

3

61D8

NUT 5

4

25E21

WASHER 5

5

4E8

WASHER

6

PLATE NLA - Was 6505739 - A

7

CHANNEL NLA - Was 6502297 - A

8

6552292

BRACKET

9

6552293

ROD

10

61D6

NUT 5

11

6515195

SEAL

12

6502539

CAP

13

COVER NLA - gearcase - LH - Was 6504621 - A

14

6502337

GASKET

15

6E6

WASHER

16

17C620

BOLT

17

4E6

WASHER

18

6514578

BOLT

19

6547997

BRACKET

20

PANEL NLA - floor - LH - Was 6502983 - A

21

PANEL NLA - floor - RH - Was 6502923 - A

22

40K12

PLUG

23

40K4

PLUG

24

COVER NLA - gearcasde - RH - Was 6504622 - A

25

668312

PIN ROLL

26

6547933

PIN

27

6546664

HINGE

28

4275652

SHIELD

29

6541218

MOUNT cab

30

84G3716

SCREW 5

31

PANEL NLA - instrument - LH - Diesel - Was 6503430 - A
