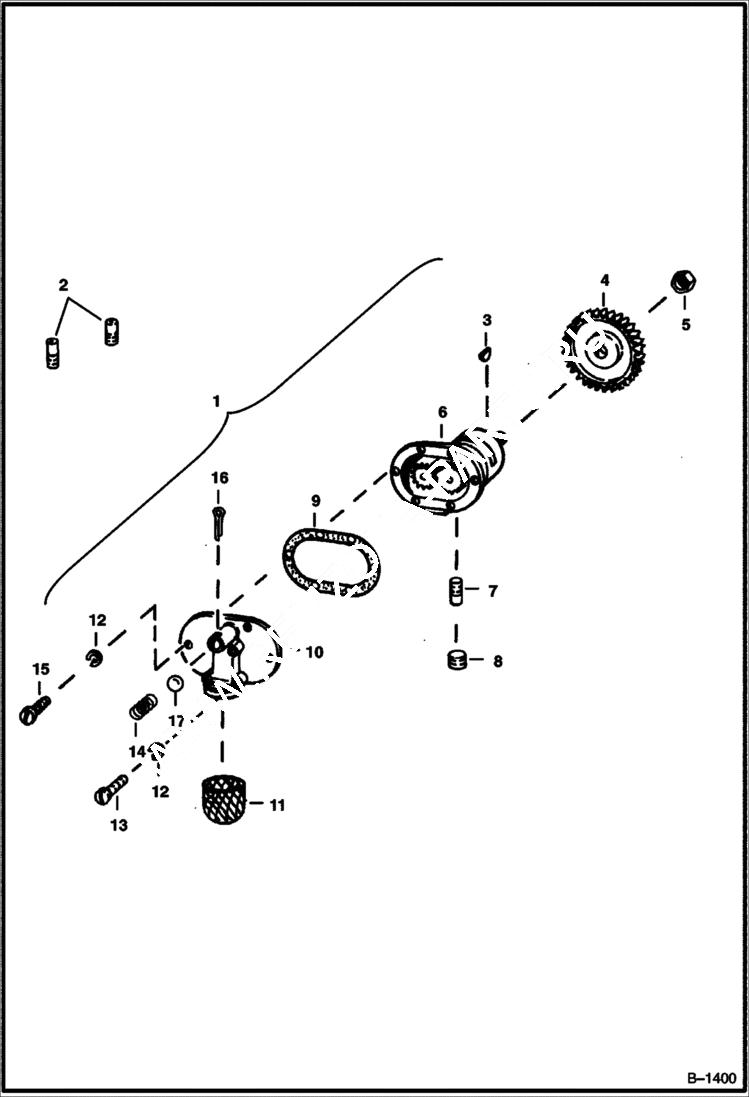

Запчасти Bobcat 600s ENGINE OIL PUMP POWER UNIT

1

6512389

PUMP oil - Ref. 3 - 16 - Was 6516636 - A

2

6516640

NOZZLE

3

6J204

KEY woodruff

4

6516638

GEAR drive

5

8D7

NUT

6

BODY NLA

7

6516637

SCREW

8

16F2

PLUG pipe

9

6516645

GASKET

10

COVER NLA

11

6516650

SCREEN

12

6516647

WASHER lock

13

SCREW NLA - Was 86G001020B - A

14

6516649

SPRING

15

86G1008

SCREW

16

1F416

PIN

17

BALL NSS
