Запчасти Bobcat 600s DISTRIBUTOR Solid State - Engine S/N 6193828 & Above POWER UNIT

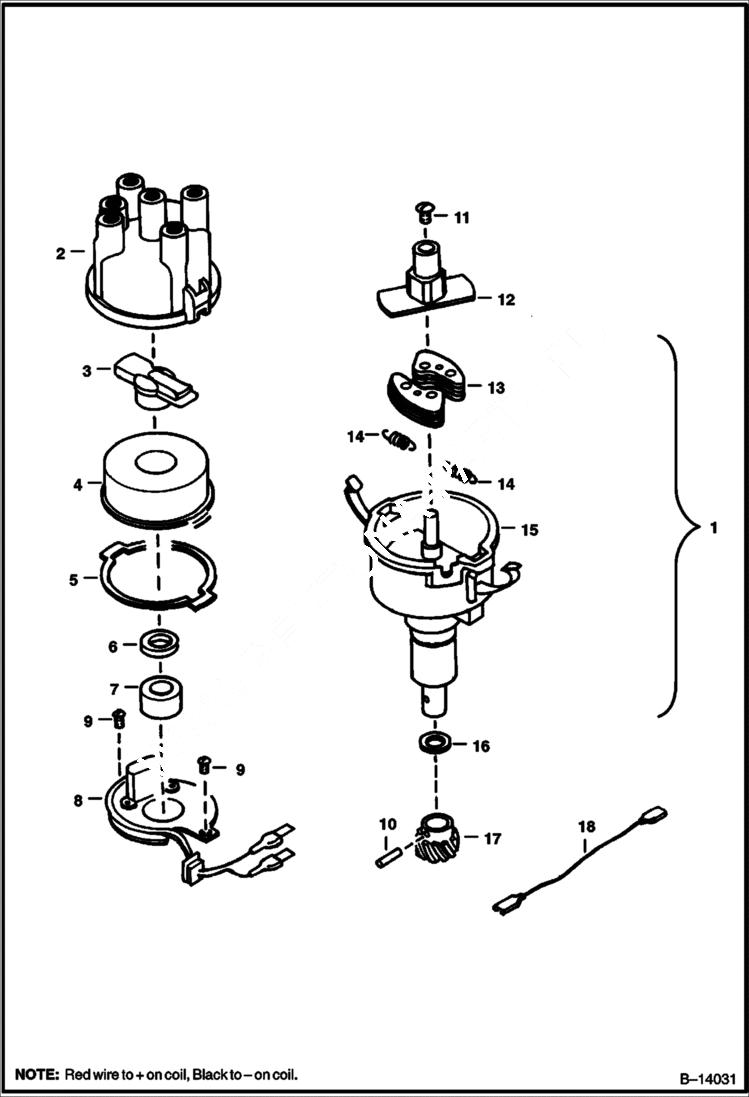

Схема запчастей Bobcat 600s - DISTRIBUTOR Solid State - Engine S/N 6193828 & Above POWER UNIT

Артикул

Название

Примечание

Количество

1

6660480

DISTRIBUTOR

2

6660470

CAP

3

6660471

ROTOR W/Ref. 6

4

6660472

COVER

5

6660473

GASKET

6

SPACER NSS - Was 6660474 - A

7

MAGNET NLA - Was 6660475 - A

8

6660476

MODULE

9

SCREW NSS - W/Ref. 8

10

PIN NSS - W/Ref. 17

11

SCREW NSS

12

CAM NSS

13

6660477

WEIGHT

14

6660478

SPRING

15

BODY NSS

16

WASHER NSS - W/Ref. 17

17

6660479

KIT gear - W/Ref. 10 & 16 - 17

18

6634329

WIRE

Выбрано товаров: 18
