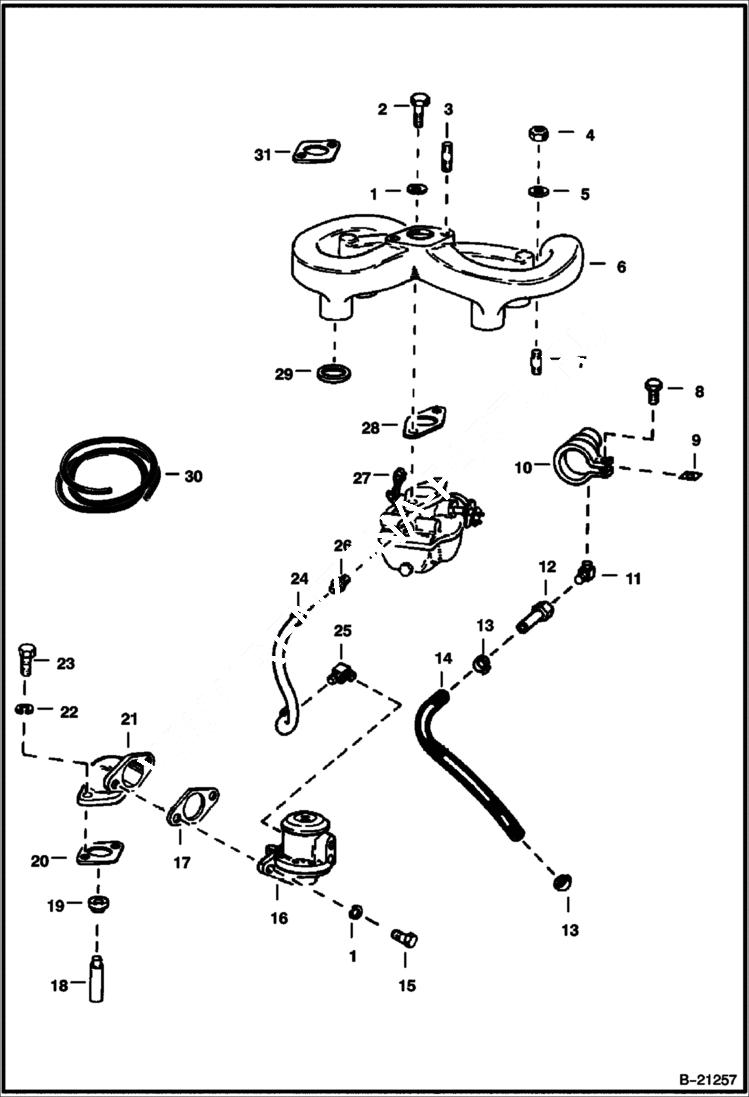

Запчасти Bobcat 600s FUEL SYSTEM & EXHAUST GROUP POWER UNIT

1

4E5

WASHER

2

17C516

BOLT

3

6516401

STUD

4

6515897

NUT

5

4E6

WASHER

6

6516404

MANIFOLD

7

6516407

STUD

7

6516406

STUD

8

17C420

BOLT

9

6516408

GASKET

10

6516394

HORN air

11

6516393

ELBOW

12

6516392

ADAPTER

13

42HS04

CLAMP, HOSE Was 6515575 - A

14

HOSE NLA - 12'' (304,8 mm) long - Order Ref. 30 - Was 6516391 - A

15

17C512

BOLT 5

16

6516374

FUEL PUMP

17

6516381

GASKET fuel pump

18

6516385

PLUNGER requires Ref. 19 when replacing

19

6516386

CAP plunger

20

6516382

GASKET

21

6516380

ADAPTER primer

22

4E4

WASHER

23

17C412

BOLT 5

24

6516373

TUBE

25

42F3

FTG

26

6515222

ADAPTER

27

6516590

CARBURETOR See Illustration CARBURETOR/ B20842

28

6516398

GASKET carburetor

29

6516405

GASKET manifold

30

656247

HOSE-BULK bulk - sold per foot

31

6541299

GASKET for muffler w/flange
