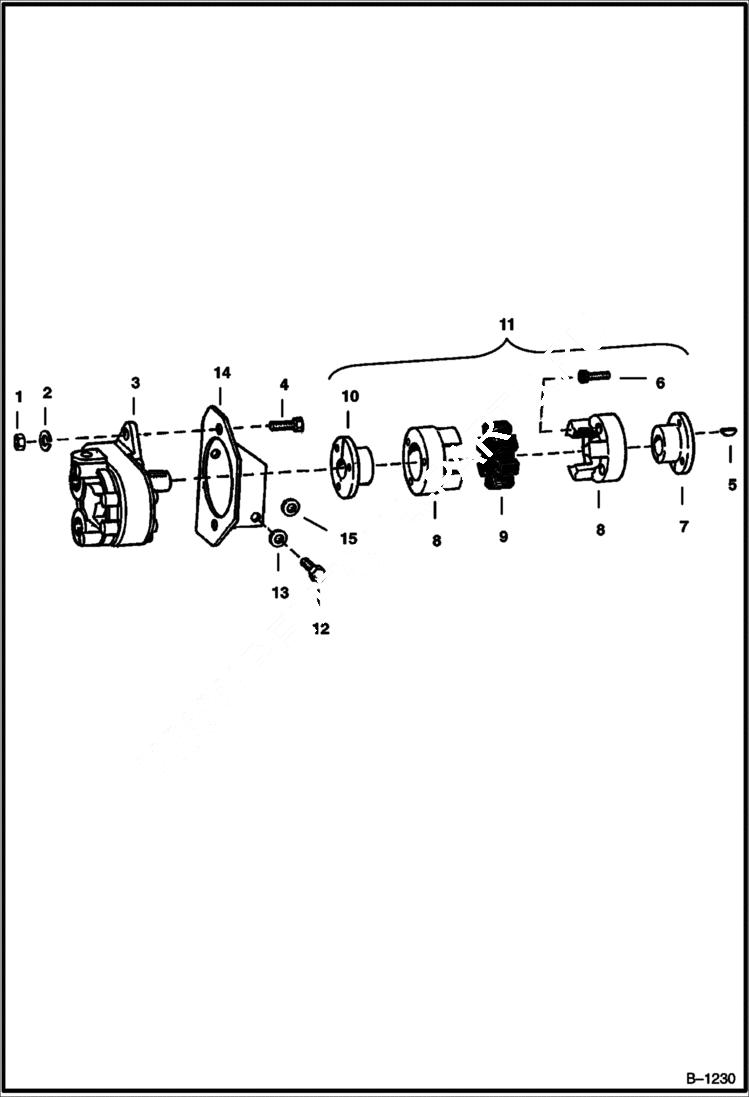

Запчасти Bobcat 600s PUMP & COUPLER POWER UNIT

1

61D6

NUT 5

2

4E6

WASHER

3

PUMP See Illustration HYDRAULIC PUMP/ C1629 See Illustration HYDRAULIC PUMP/ B21234 HYDRAULIC

4

17C624

BOLT 5

5

5J605

KEY

6

73G414

CAPSCRW10 cap

7

6515287

HUB

8

COUPLER NLA - half - Order 6670804 Kit - Was 6509766 - A

8

6670805

COUPLER For 6670804

9

6516576

DISC rubber - For 6515431 - cast coupler

9

6670807

DISC rubber - For 6670804 Kit- machined coupler

10

6515297

HUB 11/16'' (17,46mm) bore

11

COUPLER NLA - complete - Ref. 5-10 - Order 6670804 - cast coupler - Was 6515431 - A

11

6670804

COUPLER KIT Ref. 6 & 7-10 - machined coupler

12

17C516

BOLT

13

25E15

WASHER

14

BRACKET NLA - Was 6502037 - A

15

6560045

SHIM washer - .030'' (0,76mm)

15

6560046

SHIM washer - .040'' (1,02mm)
