Запчасти Bobcat 600s INTERNAL ENGINE GROUP POWER UNIT

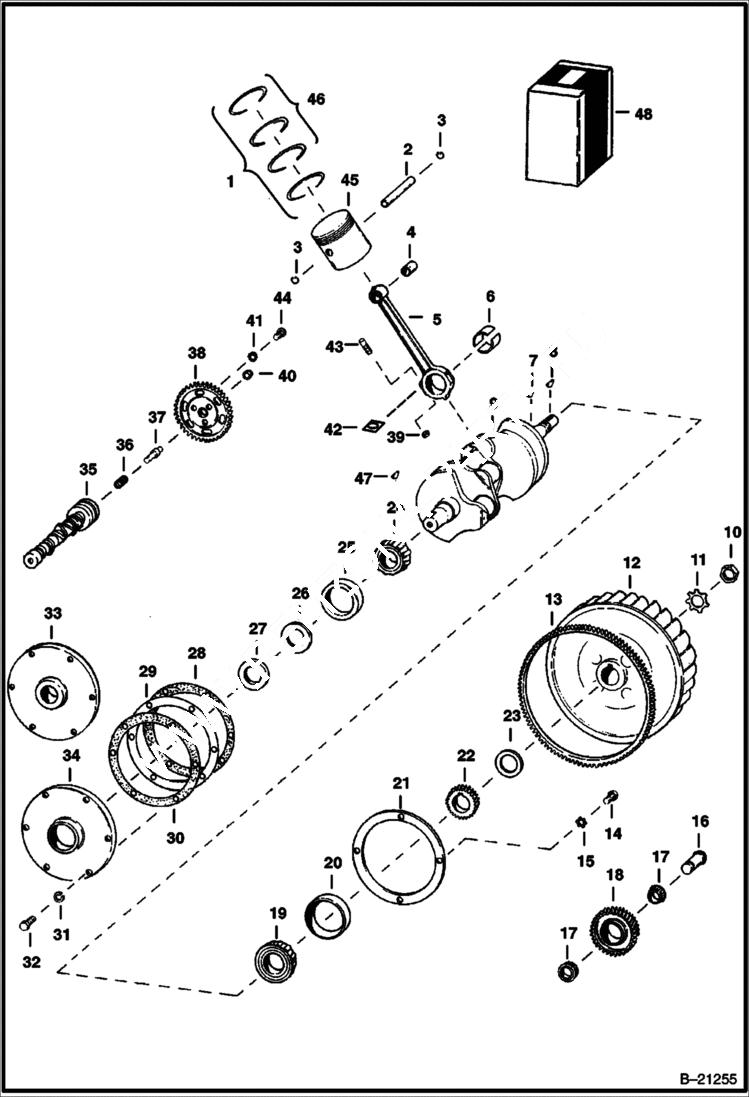

Схема запчастей Bobcat 600s - INTERNAL ENGINE GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

6516464

RINGS Std. - 4 ring

1

RINGS NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A

1

6516466

RINGS +.020'' (0,51mm) - 4 ring

1

6516467

RINGS +.030'' (0,76mm) - 4 ring

1

RINGS NLA - trichrome - Std. - 4 ring - Was 6516468 - A

1

6516469

RINGS trichrome - +.010'' (0,25 mm) - 4 ring - complete set

1

6516470

RINGS trichrome - +.020'' (0,51 mm) - 4 ring - complete set

1

RINGS NLA - trichrome - +.030'' (0,76 mm) - 4 ring - complete set - Was 6516471 - A

2

6516476

PIN piston - Std.

2

6517474

PIN piston - +.010'' (0,25mm)

3

6516463

RETAINER

4

6516462

BUSHING

5

6517472

ROD W/Ref. 4, 39 & 43

6

6517475

BEARING rod - Std. - one bearing

6

BEARING NLA - rod - .001 in. (0,03 mm) - one bearing - Was 6517476 - A

6

BEARING NLA - rod - .002'' (0,05 mm) - one bearing - Was 6517477 - A

6

6517478

BEARING rod - .010'' (0,25 mm) - one bearing

6

6517479

BEARING rod -.020'' (0,51 mm) - one bearing

7

KEY NLA - woodruff - Was 6J506 - A

8

6J1011

KEY flywheel

9

CRANKSHAFT NLA - W/gear - Was 6510277 - A

10

6516449

NUT

11

6516448

WASHER

12

FLYWHEEL NLA - W/Ref. 13 - Was 6510871 - A

13

6516682

RING GEAR

14

7G512

SCREW

15

6E5

WASHER

16

6516523

STUD idler gear

17

6517514

BEARING

18

6660248

GEAR idler - See Ref. 48 for gear kit

19

6516452

BEARING front - W/Ref. 20

20

CUP NSS - bearing

21

6516525

PLATE

22

6516451

GEAR

23

6516450

SLINGER oil

24

872144

BEARING rear - W/Ref. 25

25

CUP NSS - bearing

26

6516454

RETAINER oil seal

27

6516455

SEAL oil - W/Ref. 33

27

6511309

SEAL oil - W/Ref. 34

28

6516456

GASKET .003'' (0,08mm)

29

6516457

SHIM .013'' (0,33mm)

30

6516458

GASKET .006'' (0,15mm)

31

4E6

WASHER

32

17C620

BOLT

33

PLATE NLA

34

6511300

PLATE

35

6516517

CAMSHAFT

36

6516518

SPRING

37

6516519

PLUNGER thrust

38

6516520

GEAR camshaft

39

86D5

NUT

40

6516522

BUTTON

41

6516521

WASHER

42

6516460

SHIM

43

6516461

BOLT W/Ref. 39

44

17C516

BOLT

45

6630708

PISTON - W/Pin Std. - 4 Ring - Ws 6516472 - A

45

6630709

PISTON - W/Pin .010 (0,25mm) - ring - Was 6516473 - A

45

6630710

PISTON - W/Pin .020 (0,51mm) - 4 Ring - Was 6516474 - A

45

6630711

PISTON - W/Pin .030'' (0,76mm) - 4 Ring - Was 6516475 - A

45

PISTON - W/Pin See BTI183 NLA - Std. - 3 Ring - Was 6512145 - A

45

6512146

PISTON - W/Pin See BTI183 .010'' (0,25mm) - 3 Ring - 1 piston

45

PISTON - W/Pin See BTI183 NLA - .020 (3 Ring) - Was 6512147

45

PISTON - W/Pin See BTI183 NLA - .030 (3 Ring) - Was 6512148 - A

45

6630708

PISTON - W/Pin See BTI218 Std. - 4 Ring - 1 piston

45

6630709

PISTON - W/Pin See BTI218 .010'' (0,25MM) - 4 RING

45

6630710

PISTON - W/Pin See BTI218 .020'' (0,51MM) - 4 RING

45

6630711

PISTON - W/Pin See BTI218 .030'' (0,76MM) - 4 RING

45

PISTON - W/Pin NLA - .040'' (1,02 mm) - 4 Ring - Was 6656406 - A

46

RING SET See BTI183 NLA - Std. (3 Ring) Complete Set - Was 6512149 - A

46

6512150

RINGS See BTI183 .010'' (0,25MM) - 3 RING - COMPLETE SET

46

6512151

RINGS See BTI183 .020'' (0,51MM) - 3 RING - COMPLETE SET

46

RINGS See BTI183 NLA - .03'' (0.76mm) - 3 ring - complete set - Was 6512152

46

6630712

SET RINGS See BTI218 Std. - 4 Ring

46

6630713

SET RINGS See BTI218 .010'' (0,25MM) - 4 RING

46

6630714

SET RINGS See BTI218 .020'' (0,51mm) - 4 Ring - 2 ring sets

46

6630715

SET RINGS See BTI218 .030'' (0,76mm) - 4 Ring - 2 ring sets

46

SET RINGS NLA - .040'' (1,02 mm) - Was 6656405 - A

47

6J808

KEY, WOODRUFF

48

6516524

GEAR KIT W/Ref. 16 - 18

Выбрано товаров: 81
