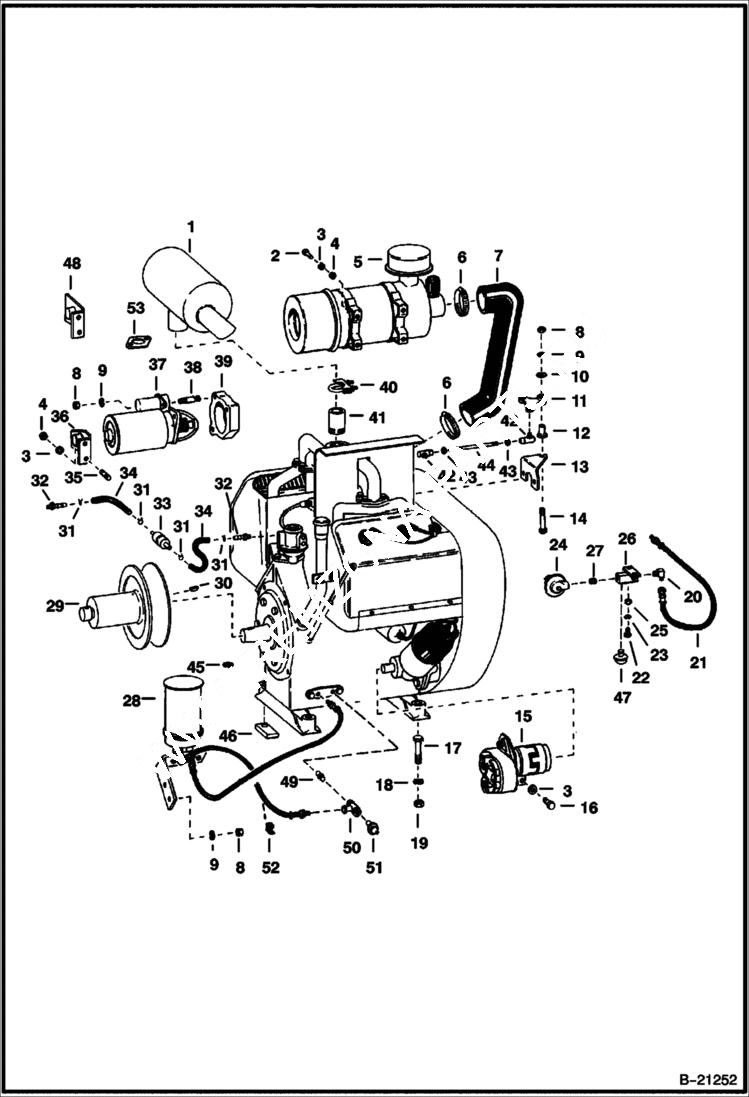

Запчасти Bobcat 600s WISCONSIN ENGINE & ATTACHING PARTS POWER UNIT

1

6519594

MUFFLER, EXHAUST

1

6515915

MUFFLER See Illustration SPARK ARRESTOR MUFFLER/ B14032 SPARK ARRESTOR

1

6515470

MUFFLER W/Farr Air Cleaner

2

17C512

BOLT 5

3

4E5

WASHER

4

61D5

NUT

5

6518192

AIR CLEANER See Illustration AIR CLEANER/ B20846

6

42H32

HS CLAMP5 Hose - Was 42H000024B - B

7

6502957

HOSE

7

HOSE NLA - LPG - Was 6503491 - A

8

61D6

NUT 5

9

4E6

WASHER

10

25E17

WASHER 5

11

6502596

BELLCRANK

12

6515202

BUSHING

13

BRACKET NLA - Was 6502974 - A

14

17C632

BOLT 5

15

HYD. PUMP See Illustration HYDRAULIC PUMP/ C1629 See Illustration HYDRAULIC PUMP/ B21234 ASSY.

16

17C516

BOLT

17

17C836

BOLT

18

4E8

WASHER

19

61D8

NUT 5

20

42F3

FTG

21

6515224

HOSE

22

17C412

BOLT 5

23

4E4

WASHER

24

SWITCH See BTI142 NLA - oil pressure - Was 6516345 - A

25

61D4

NUT 5

26

6516344

BRACKET

27

NIPPLE NLA - Was 5K108 - A

28

FILTER See Illustration ENGINE OIL FILTER/ B1420 See BTI198 engine oil

29

DRIVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1342 VARIABLE SPEED

30

6J808

KEY, WOODRUFF

31

42HS04

CLAMP, HOSE Was 6515575 - A

32

6505813

CONNECTOR

33

6511393

FILTER fuel

34

6544044

HOSE 11'' (279,4mm)

34

6544056

HOSE 4'' (101,6mm)

35

6516346

STUD

36

6511660

BRACKET

37

STARTER See Illustration STARTER/ A1379

38

6516348

STUD

39

6516349

BRACKET

40

6677363

CLAMP, FULL CIRCLE Was 657904B - A

41

6503098

CONNECTOR

42

6515194

BALL JOINT

43

14D10

NUT

44

ROD NLA - Was 6503067 - A

44

6541121

ROD LPG

45

6E8

WASHER

46

BLOCK NLA - Was 6504024 - A

47

1550963

SWITCH hourmeter

48

PLATE NLA - Order 6551298 Starter Bracket Kit

49

ADAPTER NLA - Was 663365B - A

50

18F1

TEE

51

6557924

SWITCH engine oil pressure

52

30H15

CLIP

53

6541299

GASKET for muffler w/flange
