Запчасти Bobcat 600s ALTERNATOR Delco - Remy No. 1100827 Closed ELECTRICAL SYSTEM

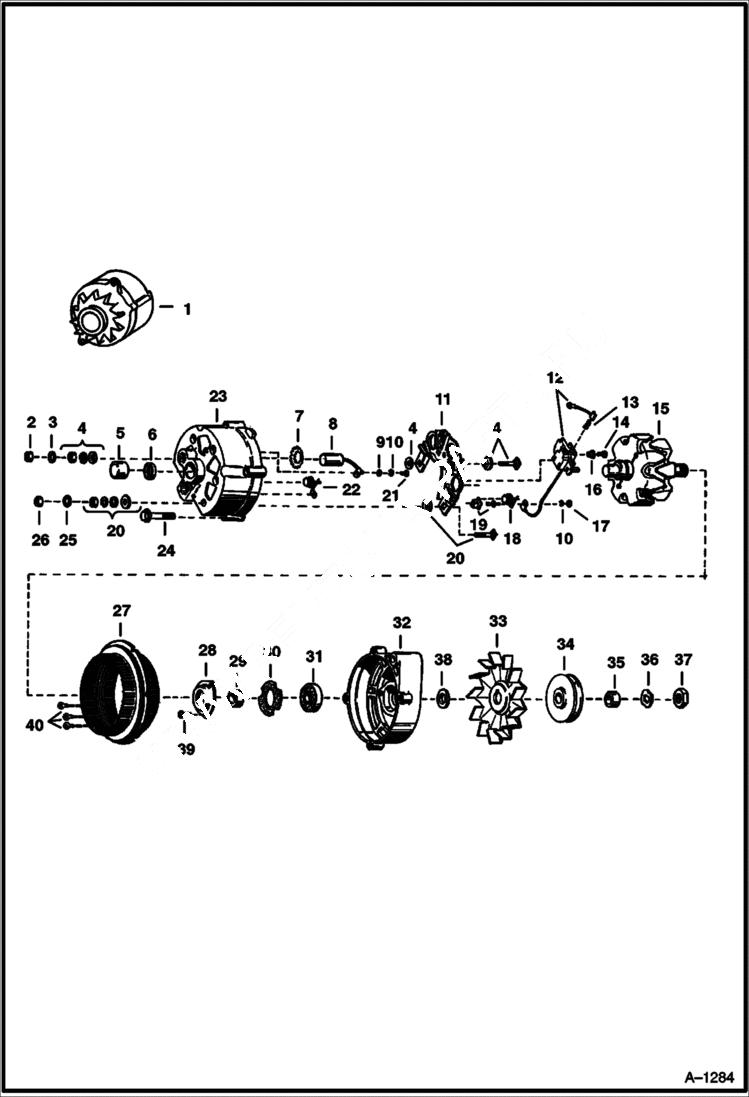

Схема запчастей Bobcat 600s - ALTERNATOR Delco - Remy No. 1100827 Closed ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

ALTERNATOR See BTI258 NLA - Ref. 2-32 & 36-40 - Was 1536554B - A

2

NUT NLA

3

WASHER NLA

4

PACKAGE NLA

5

BEARING NLA - Was 990406B - A

6

SEAL NLA - W/Felt Seal - Was 991198B - A

7

899307

SPRING

8

CAPACITOR NLA - Was 897447B - A

9

WASHER NLA

10

WASHER NSS

11

HEAT SINK NLA - heat - W/Ref. 10 & 17-19 - Was 897451B - A

12

KIT NLA - brush holder & brush - Was 897456B - A

13

SPRING NLA

14

SCREW NLA

15

ROTOR NLA - Was 899304B - A

16

INSULATOR NLA

17

NUT NSS

18

DIODE NLA - heat sink - Was 990385B - A

19

PACKAGE NSS - diode terminal

20

PACKAGE NLA

21

SCREW NLA

22

DIODE NLA - Was 897453B - A

23

990386

FRAME W/Ref. 5-7 & 22

24

SCREW NLA

25

WASHER NLA

26

NUT NLA

27

STATOR NLA - W/Ref. 40 - Was 897445B - A

28

RETAINER NLA - bearing - Was 897456B - A

29

COLLAR NLA

30

GASKET NLA

31

675181

BEARING

32

FRAME NLA

33

FAN NLA

34

6541902

PULLEY

35

SPACER NLA

36

NLA - Was 794584B - A

37

NUT NLA - Was 859369B - A

38

COLLAR NLA

39

SCREW NLA

40

CLIP NSS

Выбрано товаров: 40
