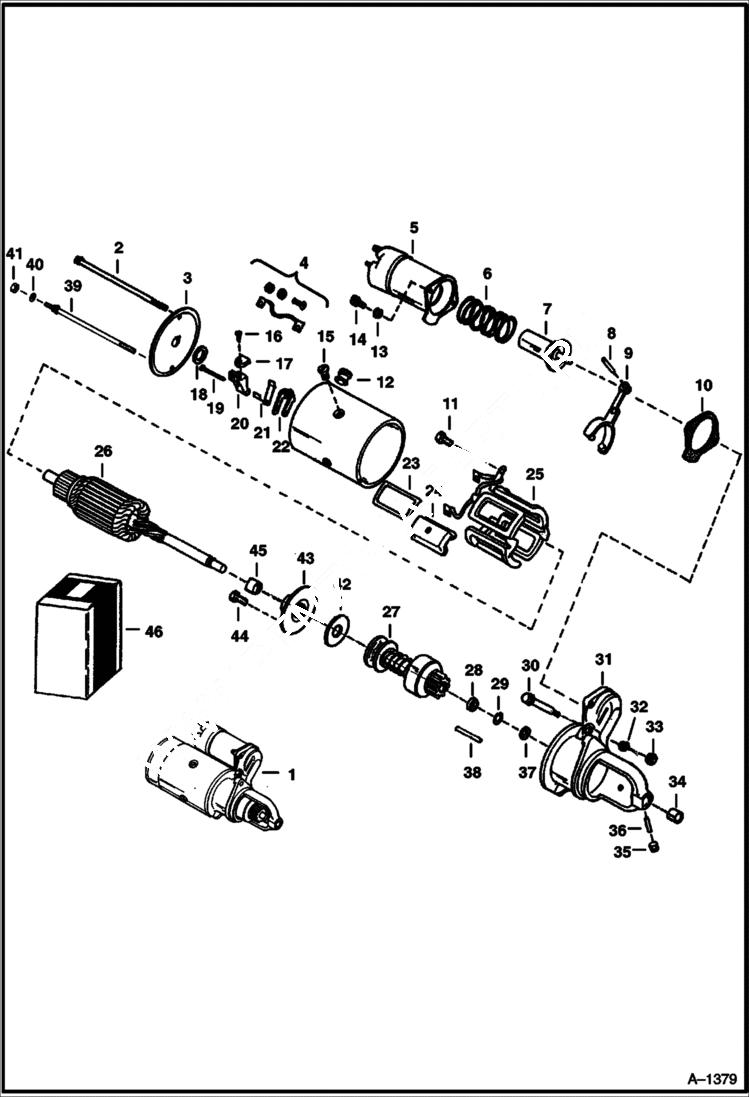

Запчасти Bobcat 600s STARTER ELECTRICAL SYSTEM

1

STARTER NLA - 1109424 - Order 6515795 REM

1

6515795REM

STARTER 1109424 - Remanufactured

1

STARTER NLA - 10455336 - Order 6515795 REM

2

880609

BOLT

3

FRAME NLA - W/Bushing - Was 999460B - A

4

877650

SUPPORT Brush

5

884581

SWITCH 1109424

5

6599449

SOLENOID 10455336

6

888968

SPRING

7

6630417

PLUNGER 1109424

7

6658903

PLUNGER 10455336

8

PIN NLA - Was 999472B - A

9

896126

LEVER 1109424

10

6658926

BOOT

11

6061008

SCREW

12

GROMMET NLA - Was 999459B - A

13

4E4

WASHER

14

43G412

SCREW

15

859377

SCREW

16

SCREW NLA - Was 86G000808B - A

17

871518

BRUSH

18

WASHER NLA - Was 860673B - A

19

871521

PIN

20

6630402

HOLDER Brush - Insulated - Was 891252B - B

21

6656399

SPRING Brush

22

880603

HOLDER Brush - Grounded

23

6656404

INSULATOR

24

POLE SHOE NLA

25

6515799

COIL 1107386

25

FIELDS NSS - 1109424 - Was 6513677 - A

25

FRAME & FIELD NSS - 10455336 - Was 6658899 - A

26

6515800

ARMATURE 1109424

26

ARMATURE NLA - 10455336 - Was 6658897 - A

27

3679995

DRIVE

28

STOP NLA - Was 878608B - A

29

942142

SNAP RING

30

884576

BOLT.

31

6631616

DRIVE Drive - W/Ref. 34

32

WASHER NLA

33

NUT NLA - Was 991219B - A

34

860669

BUSHING Drive end

35

16F2

PLUG

36

WICK NLA - Was 991174B - A

37

850363

COLLAR

38

850313

PIN

39

6515797

BOLT

40

4E4

WASHER Was 24E00004B - A

41

61D4

NUT 5

42

6630412

WASHER

43

6630411

PLATE center bearing

44

SCREW NLA - Was 907827B - A

45

BUSHING NLA - Was 907828B - A

46

6551298

KIT See Illustration WISCONSIN ENGINE & ATTACHING PARTS/ B21252 STARTER BRACKET - REF. 39 - 41 PLUS 6511660 STATER BRACKET
