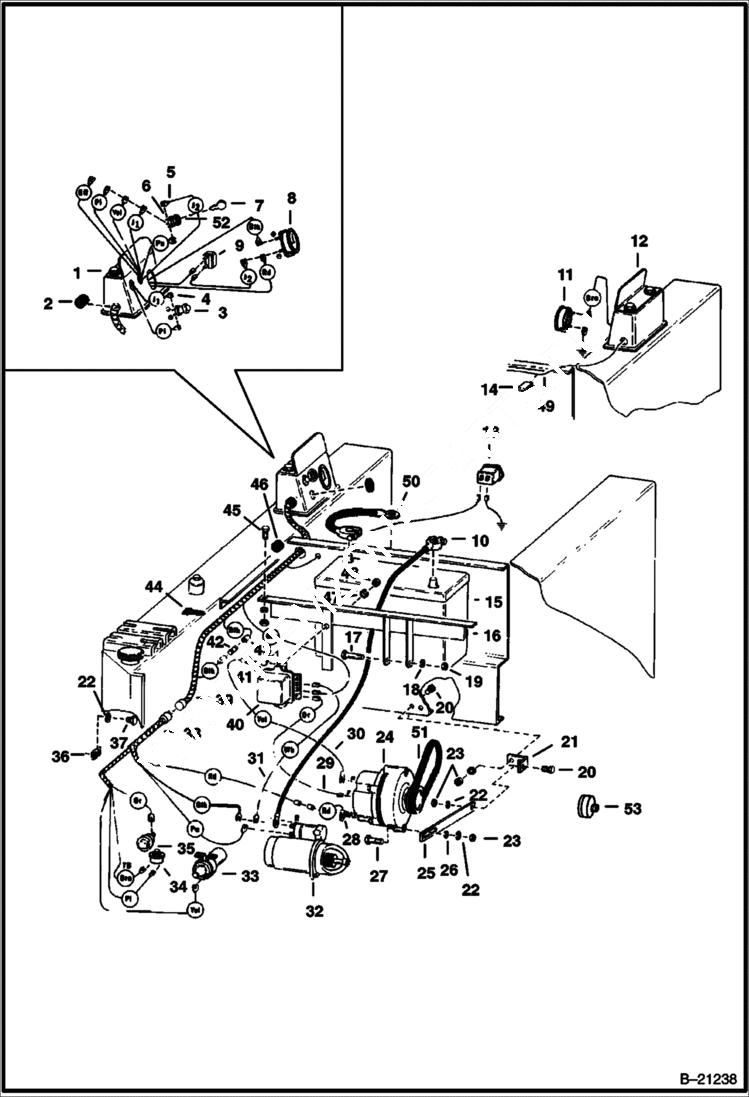

Запчасти Bobcat 600s MAIN FRAME ELECTRICAL CIRCUITRY S/N 4956 M 17179 & Below or 220000 & Below ELECTRICAL SYSTEM

1

PANEL See Illustration MAIN FRAME/ D1405 INSTRUMENT

2

565049

GROMMET

3

6515427

LIGHT oil pressure

3

BULB NSS - GE 1815

4

WIRE NLA

5

WIRE NLA

6

6518763

SWITCH ignition

7

6505412

KEY

8

6512807

GAUGE ammeter

9

6519001

BREAKER circuit

10

667483

CABLE battery - Positive

11

6660109

HOURMETER hourmeter - Was 6551203 - A

12

PANEL See Illustration MAIN FRAME/ B21229 INSTRUMENT

13

6664886

HOURMETER Was 6631657 - A

14

CLIP NLA - Was 6502236 - A

15

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

15

6630154

CAP gang - Danger

15

6630155

CAP gang - Poison

15

6514898

CAP tilt-tite

16

BRACKET NLA -mount - Was 6505265 - A

17

17C648

BOLT 5

18

4E6

WASHER

19

61D6

NUT 5

20

17C516

BOLT

21

BRACKET NLA -angle - Was 6505241 - A

22

4E5

WASHER

23

61D5

NUT

24

ALTERNATOR See Illustration ALTERNATOR/ A1284 FOR ALTERNATOR CONVERSION KIT

25

6547125

BRACKET

26

25E15

WASHER

27

17C524

BOLT

28

WIRE NLA

29

WIRE NLA

30

WIRE NLA

31

WIRE NLA

32

STARTER See Illustration STARTER/ A1379

33

887408

IGN COIL

34

1550963

SWITCH hourmeter

35

SWITCH NLA - oil pressure - Was 6516345 - A

36

6502344

CLIP

37

17C512

BOLT 5

38

6555140

HARNESS See BTI139 See BTI173 engine

39

6555558

HARNESS panel

40

908239

VOLT REG voltage - Use old mounting bracket - Was 1810770 - A

41

17C416

BOLT

42

608869

FUSE 30 Amp

43

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

44

6610510

TIE Was 1715312B - A

45

17C616

BOLT 5

46

6515603

GROMMET

47

4E4

WASHER

48

61D4

NUT 5

49

WIRE NLA - Was 6501209 - A

50

6553094

CABLE battery - Negative

51

6505371

BELT See Illustration VARIABLE SPEED JACKSHAFT/ C1377 ALTERNATOR

52

6502904

NUT ignition switch

53

GAUGE See Illustration HYDRAULIC CIRCUITRY/ D1407 VACUUM
