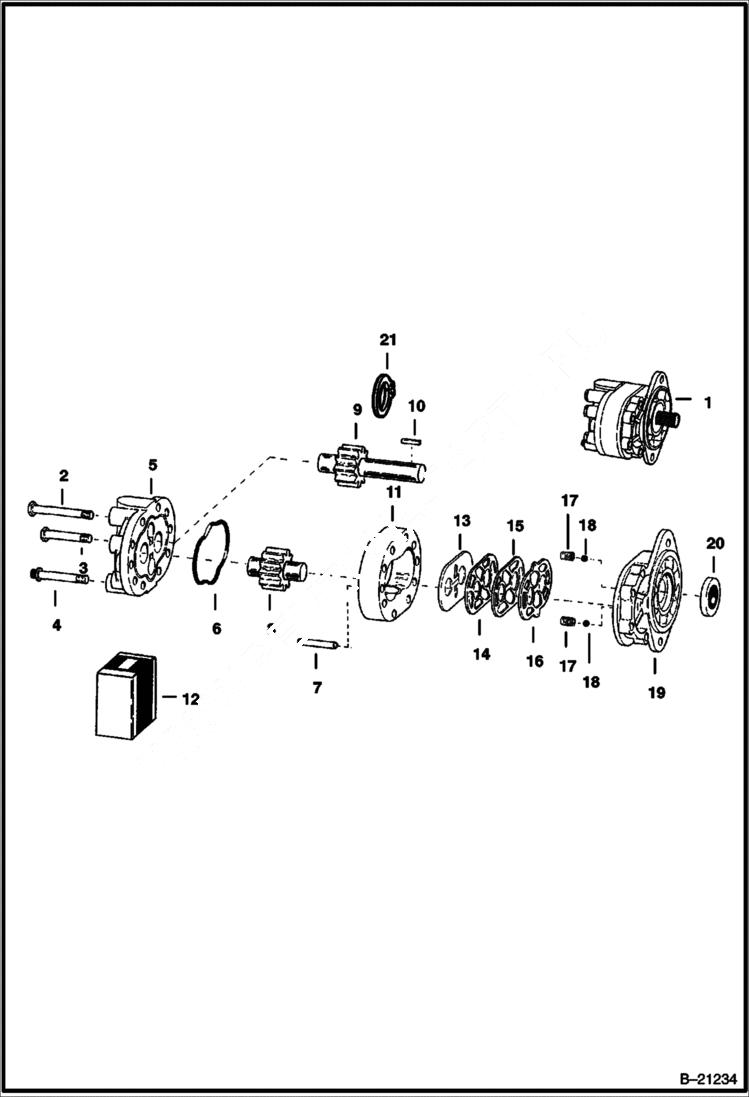

Запчасти Bobcat 600s HYDRAULIC PUMP Cessna No. 15510-OEBA & No. 24305-RAE HYDRAULIC SYSTEM

1

PUMP NLA - hyd. - Use 6519278

2

18C544

BOLT 5

3

17C536

BOLT

4

6632004

BOLT twelve point

5

COVER NLA - Back - W/Bushings - Was 991568 - A

6

25K20300

O RING 10

7

3409619

DOWEL PIN

8

6516251

GEAR

9

6516254

GEAR

10

KEY NLA - Was 6516253 - A

11

BODY NLA - Order 6519278 - Was 889847 - A

12

894215

SEAL KIT repair - Ref. 6, 13 - 18 & 20

13

DIAPHRAGM NSS

14

GASKET NSS

15

GASKET NSS

16

SEAL NSS

17

SPRING NSS

18

BALL NSS

19

PLATE NSS

20

3490597

SEAL shaft - Was 3490957 - D

21

6516286

SNAP RING
