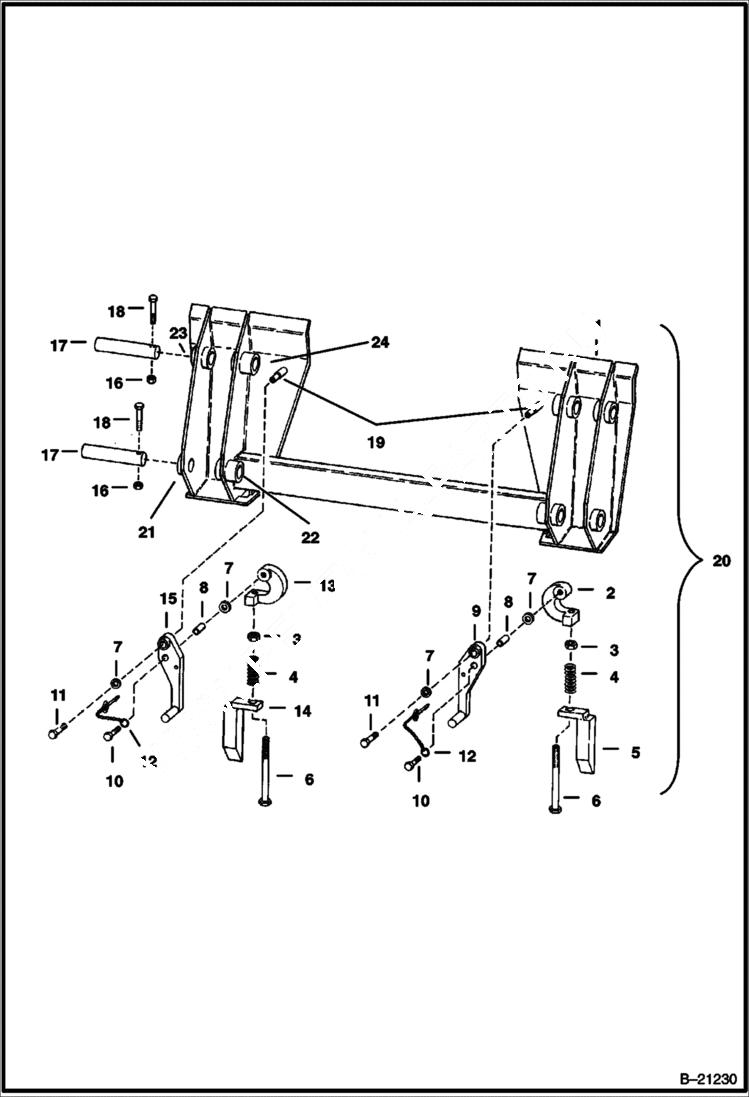

Запчасти Bobcat 600s BOB-TACH MAIN FRAME

1

FRAME NLA - Order Ref. 20

2

6548581

LINK R.H.

3

7D8

NUT 5

4

6548407

SPRING

5

6548913

WEDGE R.H.

6

17C896

BOLT

7

25E17

WASHER 5

8

6555384

BUSHING

9

6555740

LEVER R.H.

10

17C628

BOLT

11

17C608

BOLT

12

6511880

PIN lock

13

6548541

LINK L.H.

14

6548912

WEDGE L.H.

15

6555738

LEVER L.H.

16

91D5

NUT 5 Was 81D000005B - A

17

6551636

PIN .872'' (22,1 mm) x 5.60'' (142,2 mm)

18

17C540

BOLT

19

6548605

STUD

20

6551668

BOB-TACH See Illustration DECALS/ D1257 REF. 1 - 15 & 19 - Also order 6561383 DECAL

21

6551637

BUSHING

22

6551638

BUSHING

23

6551639

BUSHING

24

6551640

BUSHING
